unity-shader-tutorial-texture

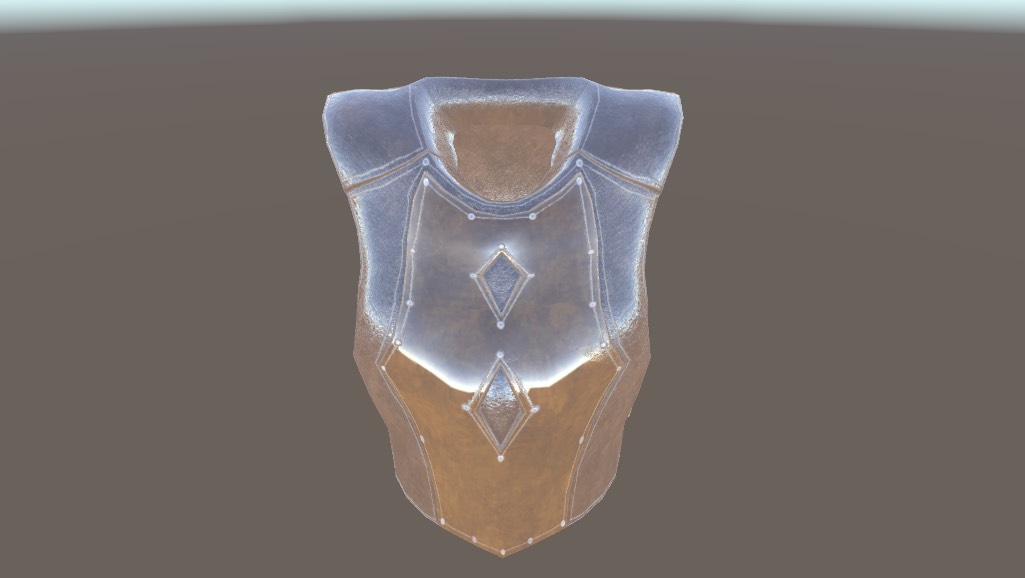

buildin效果图

urp效果图

概念

法线贴图

模型空间下的法线纹理，法线是在模型空间下的坐标系为参考系，存储在法线纹理贴图里面的。非常直观，但是也存在一些缺点，以下是优缺点列表：

• 实现简单
• 纹理坐标的缝合处和尖锐的边角处突变缝隙比较少，更加平滑
• 只能对于指定的模型进行贴图，没法很好的重用，因为法线信息是以绝对的方式被记录的，而且模型还不能随意变形。

切线空间下的法线纹理以下是优缺点列表：

• 自由度高
• 可以进行uv动画
• 可以重用
• 可以被压缩
• 纹理坐标的缝合处和尖锐的边角处突变缝隙比较多，不够平滑，但是这个误差一般都在人眼可接受的范围内

Texture.shader

Texture.shader

Shader "HHF/Tutorial/Texture"
{
    Properties
    {
        _MainTex ("Texture", 2D) = "white" {}
        [KeywordEnum(Repeat, Clamp)]_WrapMode("WrapMode",int) = 0
        [IntRange]_Mipmap("Mipmap",Range(0, 12)) = 0

        [Toggle]_NormalTexEnable("NormalTexEnabled", int) = 0
        [Normal]_NormalTex("NormalTex", 2D) = "bump"{}

        [Toggle]_CubeTexEnable("CubeTexEnabled",int) = 0
        _CubeTex("CubeTex", Cube) = "white"{}

        [Toggle]_ReflectionProbeEnable("ReflectionProbeEnabled",int) = 0
    }

    SubShader
    {
        Tags { "RenderPipeline"="UniversalPipeline" }

        Pass
        {
            Tags {"LightMode" = "UniversalForward"}

            HLSLPROGRAM
            #pragma prefer_hlslcc gles
            #pragma exclude_renderers d3d11_9x
            #pragma vertex vert
            #pragma fragment frag
            #pragma shader_feature _WRAPMODE_REPEAT _WRAPMODE_CLAMP
            #pragma shader_feature _ _NORMALTEXENABLE_ON
            #pragma shader_feature _ _CUBETEXENABLE_ON
            #pragma shader_feature _ _REFLECTIONPROBEENABLE_ON

            #include "Packages/com.unity.render-pipelines.core/ShaderLibrary/Color.hlsl"
            #include "Packages/com.unity.render-pipelines.universal/ShaderLibrary/Core.hlsl"
            #include "Packages/com.unity.render-pipelines.universal/ShaderLibrary/Lighting.hlsl"
            #include "Packages/com.unity.render-pipelines.universal/ShaderLibrary/SurfaceInput.hlsl"

            struct appdata
            {
                float4 vertex : POSITION;
                float2 uv : TEXCOORD0;
                float3 normal:NORMAL;
                float4 tangent:TANGENT;
            };

            struct v2f
            {
                float2 uv : TEXCOORD0;
                float4 positionCS : SV_POSITION;
                float3 positionWS:TEXCOORD1;
                half3 normalWS:TEXCOORD2;

                // 三个float3向量组合成我们的切线转置矩阵
                float3 tSpace0:TEXCOORD4;
                float3 tSpace1:TEXCOORD5;
                float3 tSpace2:TEXCOORD6;
            };

            CBUFFER_START(UnityPerMaterial)
            float4 _MainTex_ST;
            half _Mipmap;
            CBUFFER_END

            TEXTURE2D (_MainTex);SAMPLER(sampler_MainTex);
            TEXTURE2D (_NormalTex);SAMPLER(sampler_NormalTex);
            TEXTURECUBE (_CubeTex);SAMPLER(sampler_CubeTex);

            v2f vert (appdata v)
            {
                v2f o;
                o.positionCS = TransformObjectToHClip(v.vertex.xyz);
                o.uv = TRANSFORM_TEX(v.uv, _MainTex);
                o.positionWS = TransformObjectToWorld(v.vertex.xyz);// mul(unity_ObjectToWorld, v.vertex);
                o.normalWS = TransformObjectToWorldNormal(v.normal);

                // 切线转置矩阵的计算
                // 切线从本地空间转换到世界空间
                half3 worldTangent = TransformObjectToWorldDir(v.tangent.xyz);
                // 由v.tangent.w决定我们副切线的方向
                half sign = v.tangent.w * GetOddNegativeScale();
                // 由叉积计算出副切线
                half3 worldBinormal = cross(o.normalWS, worldTangent) * sign;
                o.tSpace0 = float3(worldTangent.x,worldBinormal.x,o.normalWS.x);
                o.tSpace1 = float3(worldTangent.y,worldBinormal.y,o.normalWS.y);
                o.tSpace2 = float3(worldTangent.z,worldBinormal.z,o.normalWS.z);
                return o;
            }

            half4 frag (v2f i) : SV_Target
            {
                // WrapMode
                #if _WRAPMODE_REPEAT
                    i.uv = frac(i.uv);
                #elif _WRAPMODE_CLAMP
                    // 方法一
                    // i.uv = clamp(i.uv,0,1);
                    // 方法二
                    i.uv = saturate (i.uv);
                #endif

                // 多级渐远Mipmap
                half4 c = SAMPLE_TEXTURE2D_LOD(_MainTex, sampler_MainTex, i.uv, _Mipmap);

                half3 worldNormal = i.normalWS;

                // 法线纹理
                #if _NORMALTEXENABLE_ON
                    Light mainLight = GetMainLight();
                    half3 normalTex = UnpackNormalScale(SAMPLE_TEXTURE2D(_NormalTex, sampler_NormalTex, i.uv), 1);
                    half3 N1 = normalize(normalTex);
                    half3 L = mainLight.direction;
                    // 通过矩阵相乘（利用点积来进行计算）得出世界空间下的法线（法线纹理）
                    worldNormal = half3(dot(i.tSpace0, normalTex), dot(i.tSpace1,normalTex), dot(i.tSpace2,normalTex));
                    half3 diffuse = mainLight.color * max(0, dot(N1, L));
                    c.rgb += diffuse;
                #endif

                // V,N,R
                // half3 V = normalize(UnityWorldSpaceViewDir(i.positionWS));
                half3 V = normalize(GetWorldSpaceViewDir(i.positionWS));
                half3 N = normalize(worldNormal);
                half3 R = reflect(-V, N);

                #if _CUBETEXENABLE_ON
                    // CubeMap
                    half4 cubemap = SAMPLE_TEXTURECUBE(_CubeTex, sampler_CubeTex, R);
                    c += cubemap;
                #endif // _CUBEMAPENABLE_ON

                #if _REFLECTIONPROBEENABLE_ON
                    // 反射探针中当前激活的CubeMap存储在unity_SpecCube0当中，需要使用 UNITY_SAMPLE_TEXCUBE 或 SAMPLE_TEXTURECUBE_LOD 然后需要对其进行解码
                    half4 cubemapProbe = SAMPLE_TEXTURECUBE (unity_SpecCube0, samplerunity_SpecCube0, R);
                    half3 probeColor = DecodeHDREnvironment (cubemapProbe, unity_SpecCube0_HDR);
                    c.rgb += probeColor;
                #endif

                return c;
            }

            ENDHLSL
        }
    }

    SubShader
    {
        Tags { "RenderType"="Opaque" }

        Pass
        {
            CGPROGRAM
            #pragma vertex vert
            #pragma fragment frag
            #pragma shader_feature _WRAPMODE_REPEAT _WRAPMODE_CLAMP
            #pragma shader_feature _ _NORMALTEXENABLE_ON
            #pragma shader_feature _ _CUBETEXENABLE_ON
            #pragma shader_feature _ _REFLECTIONPROBEENABLE_ON

            #include "UnityCG.cginc"
            #include "AutoLight.cginc"
            #include "Lighting.cginc"

            struct appdata
            {
                float4 vertex : POSITION;
                float2 uv : TEXCOORD0;
                float3 normal:NORMAL;
                float4 tangent:TANGENT;
            };

            struct v2f
            {
                float2 uv : TEXCOORD0;
                float4 positionCS : SV_POSITION;
                float3 positionWS:TEXCOORD1;
                half3 normalWS:TEXCOORD2;

                // 三个float3向量组合成我们的切线转置矩阵
                float3 tSpace0:TEXCOORD4;
                float3 tSpace1:TEXCOORD5;
                float3 tSpace2:TEXCOORD6;
            };

            sampler2D _MainTex;
            float4 _MainTex_ST;
            sampler2D _NormalTex;
            half _Mipmap;
            samplerCUBE _CubeTex;

            v2f vert (appdata v)
            {
                v2f o;
                o.positionCS = UnityObjectToClipPos(v.vertex);
                o.uv = TRANSFORM_TEX(v.uv, _MainTex);
                o.positionWS = mul(unity_ObjectToWorld,v.vertex);
                o.normalWS = UnityObjectToWorldNormal(v.normal);

                // 切线转置矩阵的计算
                // 切线从本地空间转换到世界空间
                half3 worldTangent = UnityObjectToWorldDir(v.tangent);
                // 由v.tangent.w决定我们副切线的方向
                half tangentSign = v.tangent.w * unity_WorldTransformParams.w;
                // 由叉积计算出副切线
                half3 worldBinormal = cross(o.normalWS, worldTangent) * tangentSign;
                o.tSpace0 = float3(worldTangent.x,worldBinormal.x,o.normalWS.x);
                o.tSpace1 = float3(worldTangent.y,worldBinormal.y,o.normalWS.y);
                o.tSpace2 = float3(worldTangent.z,worldBinormal.z,o.normalWS.z);
                return o;
            }

            half4 frag (v2f i) : SV_Target
            {
                // WrapMode
                #if _WRAPMODE_REPEAT
                    i.uv = frac(i.uv);
                #elif _WRAPMODE_CLAMP
                    // 方法一
                    // i.uv = clamp(i.uv,0,1);
                    // 方法二
                    i.uv = saturate (i.uv);
                #endif

                // 多级渐远Mipmap
                // tex2Dlod的第二个参数是4维向量，最后一个分量w表示的是采样级别
                float4 uvMipmap = float4(i.uv, 0, _Mipmap);
                half4 c = tex2Dlod(_MainTex, uvMipmap);

                half3 worldNormal = i.normalWS;

                // 法线纹理
                #if _NORMALTEXENABLE_ON
                    half3 normalTex = UnpackNormal(tex2D(_NormalTex, i.uv));
                    half3 N1 = normalize(normalTex);
                    half3 L = _WorldSpaceLightPos0.xyz;
                    // 通过矩阵相乘（利用点积来进行计算）得出世界空间下的法线（法线纹理）
                    half3 diffuse = _LightColor0.rgb * max(0, dot(N1, L));
                    worldNormal = half3(dot(i.tSpace0, normalTex), dot(i.tSpace1,normalTex), dot(i.tSpace2,normalTex));
                    c.rgb += diffuse;
                #endif

                // V,N,R
                half3 V = normalize(UnityWorldSpaceViewDir(i.positionWS));
                half3 N = normalize(worldNormal);
                half3 R = reflect(-V, N);

                 #if _CUBETEXENABLE_ON
                    // CubeMap
                    half4 cubemap = texCUBE(_CubeTex, R);
                    c += cubemap;
                #endif // _CUBEMAPENABLE_ON

                #if _REFLECTIONPROBEENABLE_ON
                    // 反射探针中当前激活的CubeMap存储在unity_SpecCube0当中，必须要用UNITY_SAMPLE_TEXCUBE进行采样，然后需要对其进行解码
                    half4 cubemapProbe = UNITY_SAMPLE_TEXCUBE (unity_SpecCube0, R);
                    half3 probeColor = DecodeHDR (cubemapProbe, unity_SpecCube0_HDR);
                    c.rgb += probeColor;
                #endif

                return c;
            }
            ENDCG
        }
    }
}
