unity-shader-tutorial-kajiyaKayHair

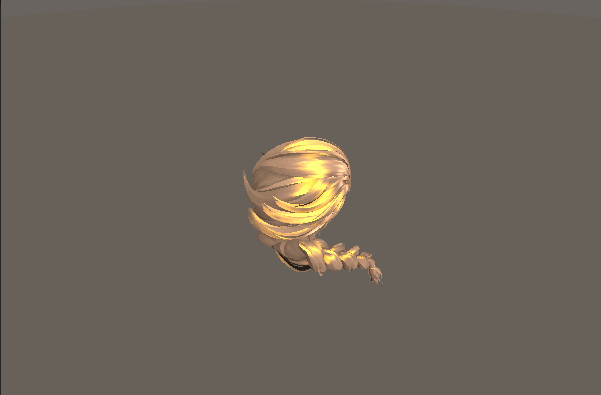

buildin效果图

urp效果图

KajiyaKayHair.shader

KajiyaKayHair.shader

Shader "HHF/Tutorial/KajiyaKayHair"
{
    Properties
    {
        [Header(Base)]
        _BaseColor("Base Color",color) = (1,1,1,1)
        _ShadowColor("Shadow Color",color) = (0,0,0,0)
        _BaseMap("BaseMap(RGB) Cutoff(A)", 2D) = "white" {}
        _Cutoff("Cutoff",range(0,1)) = 0.3
        _AOIntensity("AO Intensity",range(0,1)) = 0.35

        [Header(Anisotropic)]
        _NoiseMap("Noise", 2D) = "white" {}
        _PrimaryColor("PrimaryColor",color) = (1,1,1,1)
        _PrimaryStrength("PrimaryStrength",float) = 1.5
        _PrimaryFade("PrimaryFade",float) = 80
        _PrimaryShift("PrimaryShift",range(-1,1)) = 0
        _PrimarySharp("PrimarySharp",range(-2,2)) = 1
        _SecondaryColor("SecondaryColor",color) = (1,1,1,1)
        _SecondaryStrength("SecondaryStrength",float) = 1.5
        _SecondaryFade("SecondaryFade",float) = 80
        _SecondaryShift("SecondaryShift",range(-1,1)) = 0.65
        _SecondarySharp("SecondarySharp",range(-2,2)) = 1
    }

    SubShader
    {
        Tags { "Queue"="Transparent" "RenderType" = "Transparent" "IgnoreProjector" = "True" "RenderPipeline" = "UniversalPipeline" }
        Cull Off

        Pass
        {
            Tags{ "LightMode" = "SRPDefaultUnlit"}
            ZWrite On
            ZTest LEqual
            HLSLPROGRAM
            // Required to compile gles 2.0 with standard srp library
            #pragma prefer_hlslcc gles
            #pragma exclude_renderers d3d11_9x
            #pragma vertex vert
            #pragma fragment frag
            #include "Packages/com.unity.render-pipelines.core/ShaderLibrary/Color.hlsl"
            #include "Packages/com.unity.render-pipelines.universal/ShaderLibrary/Core.hlsl"
            #include "Packages/com.unity.render-pipelines.universal/ShaderLibrary/Lighting.hlsl"
            #include "Packages/com.unity.render-pipelines.core/ShaderLibrary/UnityInstancing.hlsl"

            struct appdata
            {
                float4 vertex : POSITION;
                float2 uv : TEXCOORD0;
                float3 normal : NORMAL;
                half4 color : COLOR;
            };

            struct v2f
            {
                float4 positionCS : SV_POSITION;
                float4 uv : TEXCOORD0;
                float3 viewWS : TEXCOORD1;
                half4 normalWS : TEXCOORD3;
                half4 tangentWS : TEXCOORD4;
                half4 bitangentWS : TEXCOORD5;
                half4 color : TEXCOORD6;
            };

            CBUFFER_START(UnityPerMaterial)
            half4 _BaseColor,_ShadowColor;
            float4 _BaseMap_ST,_NoiseMap_ST;
            half _Cutoff;
            half _AOIntensity;
            half4 _PrimaryColor;
            half _PrimaryStrength,_PrimaryFade,_PrimaryShift,_PrimarySharp;
            half4 _SecondaryColor;
            half _SecondaryStrength,_SecondaryFade,_SecondaryShift,_SecondarySharp;
            CBUFFER_END
            TEXTURE2D (_BaseMap);SAMPLER(sampler_BaseMap);
            TEXTURE2D (_NoiseMap);SAMPLER(sampler_NoiseMap);

            v2f vert(appdata v)
            {
                v2f o = (v2f)0;

                o.positionCS = TransformObjectToHClip(v.vertex.xyz);
                o.uv.xy = TRANSFORM_TEX(v.uv, _BaseMap);
                o.uv.zw = TRANSFORM_TEX(v.uv, _NoiseMap);
                o.color = v.color;
                o.normalWS.xyz = TransformObjectToWorldNormal(v.normal);
                return o;
            }

            half4 frag(v2f i) : SV_Target
            {
                half4 c;
                half4 baseMap = SAMPLE_TEXTURE2D(_BaseMap, sampler_BaseMap, i.uv.xy);
                clip(baseMap.a - _Cutoff);

                Light mainLight = GetMainLight();
                half3 L = mainLight.direction;
                half3 N = normalize(i.normalWS.xyz);

                // 漫反射
                half NoL = dot(N,L)*0.4+0.6;
                half4 NoLColor = lerp(_ShadowColor, _BaseColor, NoL);
                // return half4(NoLColor,1);
                half3 diffuse = baseMap.rgb * NoLColor.rgb;
                // 顶点颜色r通道控制ao
                half ao = lerp(1, i.color.r, _AOIntensity);
                diffuse *= ao;
                c.rgb = diffuse;

                c.a = baseMap.a;

                return c;
            }
            ENDHLSL
        }

        Pass
        {
            Tags {"LightMode" = "UniversalForward"}
            Blend SrcAlpha OneMinusSrcAlpha
            ZWrite Off
            HLSLPROGRAM
            // Required to compile gles 2.0 with standard srp library
            #pragma prefer_hlslcc gles
            #pragma exclude_renderers d3d11_9x
            #pragma vertex vert
            #pragma fragment frag
            #include "Packages/com.unity.render-pipelines.core/ShaderLibrary/Color.hlsl"
            #include "Packages/com.unity.render-pipelines.universal/ShaderLibrary/Core.hlsl"
            #include "Packages/com.unity.render-pipelines.universal/ShaderLibrary/Lighting.hlsl"
            #include "Packages/com.unity.render-pipelines.core/ShaderLibrary/UnityInstancing.hlsl"

            struct appdata
            {
                float4 vertex : POSITION;
                float2 uv : TEXCOORD0;
                float3 normal : NORMAL;
                float4 tangent : TANGENT;
                half4 color : COLOR;
            };

            struct v2f
            {
                float4 positionCS : SV_POSITION;
                float4 uv : TEXCOORD0;
                float3 viewWS : TEXCOORD1;
                half4 normalWS : TEXCOORD3;
                half4 tangentWS : TEXCOORD4;
                half4 bitangentWS : TEXCOORD5;
                half4 color : TEXCOORD6;
            };

            CBUFFER_START(UnityPerMaterial)
            half4 _BaseColor,_ShadowColor;
            float4 _BaseMap_ST,_NoiseMap_ST;
            half _Cutoff;
            half _AOIntensity;
            half4 _PrimaryColor;
            half _PrimaryStrength,_PrimaryFade,_PrimaryShift,_PrimarySharp;
            half4 _SecondaryColor;
            half _SecondaryStrength,_SecondaryFade,_SecondaryShift,_SecondarySharp;
            CBUFFER_END
            TEXTURE2D (_BaseMap);SAMPLER(sampler_BaseMap);
            TEXTURE2D (_NoiseMap);SAMPLER(sampler_NoiseMap);

            // 各向异性高光
            // noise：毛发噪波度
            // @color：高光颜色
            // @strength：高光强度
            // @fade：高光范围
            // @shift：高光偏移
            // @sharp：锐化程度
            half3 AnisotropicSpecular(half noise, half3 color, half strength, half fade, half shift, half sharp, half3 T,half3 H,half3 N,half3 V)
            {
                half3 specular;
                half offset = noise.r * sharp + shift;
                T = normalize(T + offset * H);
                half ToH = dot(T,H);
                half sinTH = sqrt(1-ToH*ToH);
                // dirAtten：kajiyakay原公式，处理头发顶部暗底部亮衰减
                // half dirAtten = smoothstep(-1,0,ToH);
                // atten：非尼尔公式，处理头发中间亮两边暗衰减
                half atten = saturate(dot(N,V));
                specular = atten * strength * pow(saturate(sinTH), fade);
                specular *= color.rgb;
                return specular;
            }

            v2f vert(appdata v)
            {
                v2f o = (v2f)0;

                o.positionCS = TransformObjectToHClip(v.vertex.xyz);
                o.uv.xy = TRANSFORM_TEX(v.uv, _BaseMap);
                o.uv.zw = TRANSFORM_TEX(v.uv, _NoiseMap);
                o.color = v.color;
                float3 positionWS = TransformObjectToWorld(v.vertex.xyz);
                o.viewWS = _WorldSpaceCameraPos - positionWS;
                // o.tangentWS.xyz = TransformObjectToWorldDir(v.tangentOS.xyz);
                o.normalWS.xyz = TransformObjectToWorldNormal(v.normal);
                o.tangentWS.xyz = TransformObjectToWorldDir(v.tangent.xyz);
                // half sign = v.tangentOS.w * GetOddNegativeScale();
                // o.bitangentWS.xyz = cross(o.normalWS, o.tangentWS) * sign;
                return o;
            }

            half4 frag(v2f i) : SV_Target
            {
                half4 c;
                half4 baseMap = SAMPLE_TEXTURE2D(_BaseMap, sampler_BaseMap, i.uv.xy);
                half4 noiseMap = SAMPLE_TEXTURE2D(_NoiseMap, sampler_NoiseMap, i.uv.zw) - 0.5;

                // 使用切线还是副切线由模型决定，模型uv决定，因为uv决定切线方向，uv是横着的时候使用负切线，竖着的时候使用切线
                // 建议使用切线，相比副切线少了点计算量
                // half3 T = normalize(i.bitangentWS);
                half3 T = normalize(i.tangentWS.xyz);
                Light mainLight = GetMainLight();
                half3 L = mainLight.direction;
                half3 N = normalize(i.normalWS.xyz);
                half3 V = normalize(i.viewWS);
                half3 H = normalize(L+V);

                // 漫反射
                half NoL = dot(N,L) * 0.4 + 0.6;
                half4 NoLColor = lerp(_ShadowColor, _BaseColor, NoL);
                // return half4(NoLColor,1);
                half3 diffuse = baseMap.rgb * NoLColor.rgb;
                // 顶点颜色控制ao
                half ao = lerp(1, i.color.r, _AOIntensity);
                diffuse *= ao;

                // 各向异性高光
                half3 primarySpecular = AnisotropicSpecular(noiseMap.r, _PrimaryColor.rgb, _PrimaryStrength, _PrimaryFade, _PrimaryShift, _PrimarySharp,T,H,N,V);
                half3 secondarySpecular = AnisotropicSpecular(noiseMap.r, _SecondaryColor.rgb, _SecondaryStrength, _SecondaryFade, _SecondaryShift, _SecondarySharp,T,H,N,V);

                c.rgb = diffuse + primarySpecular + secondarySpecular;

                c.a = baseMap.a;

                return c;
            }
            ENDHLSL
        }
    }

    SubShader
    {
        Tags { "Queue"="Transparent"  }
        Cull Off

        Pass
        {
            ZWrite On
            ZTest LEqual

            CGPROGRAM
            #pragma vertex vert
            #pragma fragment frag
            #include "UnityCG.cginc"

            struct appdata
            {
                float4 vertex : POSITION;
                float2 uv : TEXCOORD0;
                float3 normal : NORMAL;
                half4 color : COLOR;
            };

            struct v2f
            {
                float4 positionCS : SV_POSITION;
                float4 uv : TEXCOORD0;
                float3 viewWS : TEXCOORD1;
                half4 normalWS : TEXCOORD3;
                half4 tangentWS : TEXCOORD4;
                half4 bitangentWS : TEXCOORD5;
                half4 color : TEXCOORD6;
            };

            half4 _BaseColor,_ShadowColor;
            sampler2D _BaseMap; float4 _BaseMap_ST;
            sampler2D _NoiseMap; float4 _NoiseMap_ST;
            half _Cutoff;
            half _AOIntensity;
            half4 _PrimaryColor;
            half _PrimaryStrength,_PrimaryFade,_PrimaryShift,_PrimarySharp;
            half4 _SecondaryColor;
            half _SecondaryStrength,_SecondaryFade,_SecondaryShift,_SecondarySharp;

            v2f vert(appdata v)
            {
                v2f o = (v2f)0;

                o.positionCS = UnityObjectToClipPos(v.vertex.xyz);
                o.uv.xy = TRANSFORM_TEX(v.uv, _BaseMap);
                o.uv.zw = TRANSFORM_TEX(v.uv, _NoiseMap);
                o.color = v.color;
                o.normalWS.xyz = UnityObjectToWorldNormal(v.normal);
                return o;
            }

            half4 frag(v2f i) : SV_Target
            {
                half4 c;
                half4 baseMap = tex2D(_BaseMap, i.uv.xy);
                clip(baseMap.a - _Cutoff);

                half3 L = _WorldSpaceLightPos0;
                half3 N = normalize(i.normalWS.xyz);

                // 漫反射
                half NoL = dot(N,L)*0.4+0.6;
                half4 NoLColor = lerp(_ShadowColor, _BaseColor, NoL);
                // return half4(NoLColor,1);
                half3 diffuse = baseMap.rgb * NoLColor.rgb;
                // 顶点颜色r通道控制ao
                half ao = lerp(1, i.color.r, _AOIntensity);
                diffuse *= ao;
                c.rgb = diffuse;

                c.a = baseMap.a;

                return c;
            }

            ENDCG
        }

        Pass
        {
            Blend SrcAlpha OneMinusSrcAlpha
            ZWrite Off

            CGPROGRAM
            #pragma vertex vert
            #pragma fragment frag
            #include "UnityCG.cginc"

            struct appdata
            {
                float4 vertex : POSITION;
                float2 uv : TEXCOORD0;
                float3 normal : NORMAL;
                float4 tangent : TANGENT;
                half4 color : COLOR;
            };

            struct v2f
            {
                float4 positionCS : SV_POSITION;
                float4 uv : TEXCOORD0;
                float3 viewWS : TEXCOORD1;
                half4 normalWS : TEXCOORD3;
                half4 tangentWS : TEXCOORD4;
                half4 bitangentWS : TEXCOORD5;
                half4 color : TEXCOORD6;
            };

            half4 _BaseColor,_ShadowColor;
            sampler2D _BaseMap; float4 _BaseMap_ST;
            sampler2D _NoiseMap; float4 _NoiseMap_ST;
            half _Cutoff;
            half _AOIntensity;
            half4 _PrimaryColor;
            half _PrimaryStrength,_PrimaryFade,_PrimaryShift,_PrimarySharp;
            half4 _SecondaryColor;
            half _SecondaryStrength,_SecondaryFade,_SecondaryShift,_SecondarySharp;

            // 各向异性高光
            // noise：毛发噪波度
            // @color：高光颜色
            // @strength：高光强度
            // @fade：高光范围
            // @shift：高光偏移
            // @sharp：锐化程度
            half3 AnisotropicSpecular(half noise, half3 color, half strength, half fade, half shift, half sharp, half3 T,half3 H,half3 N,half3 V)
            {
                half3 specular;
                half offset = noise.r * sharp + shift;
                T = normalize(T + offset * H);
                half ToH = dot(T,H);
                half sinTH = sqrt(1-ToH*ToH);
                // dirAtten：kajiyakay原公式，处理头发顶部暗底部亮衰减
                // half dirAtten = smoothstep(-1,0,ToH);
                // atten：非尼尔公式，处理头发中间亮两边暗衰减
                half atten = saturate(dot(N,V));
                specular = atten * strength * pow(saturate(sinTH), fade);
                specular *= color.rgb;
                return specular;
            }

            v2f vert(appdata v)
            {
                v2f o = (v2f)0;

                o.positionCS = UnityObjectToClipPos(v.vertex.xyz);
                o.uv.xy = TRANSFORM_TEX(v.uv, _BaseMap);
                o.uv.zw = TRANSFORM_TEX(v.uv, _NoiseMap);
                o.color = v.color;
                float3 positionWS = mul(UNITY_MATRIX_M, v.vertex);
                o.viewWS = _WorldSpaceCameraPos - positionWS;
                // o.tangentWS.xyz = TransformObjectToWorldDir(v.tangentOS.xyz);
                o.normalWS.xyz = UnityObjectToWorldNormal(v.normal);
                o.tangentWS.xyz = UnityObjectToWorldDir(v.tangent);
                // half sign = v.tangentOS.w * GetOddNegativeScale();
                // o.bitangentWS.xyz = cross(o.normalWS, o.tangentWS) * sign;
                return o;
            }

            half4 frag(v2f i) : SV_Target
            {
                half4 c;
                half4 baseMap = tex2D(_BaseMap, i.uv.xy);
                half4 noiseMap = tex2D(_NoiseMap, i.uv.zw) - 0.5;

                // 使用切线还是副切线由模型决定，模型uv决定，因为uv决定切线方向，uv是横着的时候使用负切线，竖着的时候使用切线
                // 建议使用切线，相比副切线少了点计算量
                // half3 T = normalize(i.bitangentWS);
                half3 T = normalize(i.tangentWS.xyz);
                half3 L = _WorldSpaceLightPos0;
                half3 N = normalize(i.normalWS.xyz);
                half3 V = normalize(i.viewWS);
                half3 H = normalize(L+V);

                // 漫反射
                half NoL = dot(N,L) * 0.4 + 0.6;
                half4 NoLColor = lerp(_ShadowColor, _BaseColor, NoL);
                // return half4(NoLColor,1);
                half3 diffuse = baseMap.rgb * NoLColor.rgb;
                // 顶点颜色控制ao
                half ao = lerp(1, i.color.r, _AOIntensity);
                diffuse *= ao;

                // 各向异性高光
                half3 primarySpecular = AnisotropicSpecular(noiseMap.r, _PrimaryColor.rgb, _PrimaryStrength, _PrimaryFade, _PrimaryShift, _PrimarySharp,T,H,N,V);
                half3 secondarySpecular = AnisotropicSpecular(noiseMap.r, _SecondaryColor.rgb, _SecondaryStrength, _SecondaryFade, _SecondaryShift, _SecondarySharp,T,H,N,V);

                c.rgb = diffuse + primarySpecular + secondarySpecular;

                c.a = baseMap.a;

                return c;
            }

            ENDCG
        }
    }

}
