unity-shader-tutorial-baseLight

Posted on Edited on

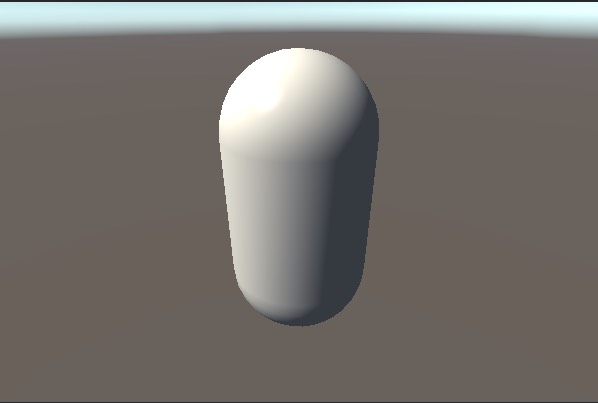

buildin效果图

urp效果图

BaseLight.shader

BaseLight.shader
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
Shader "HHF/Tutorial/BaseLight"
{
    Properties
    {
       	_DiffuseColor ("Diffuse Color", Color) = (1, 1, 1, 1)
    	_SpecularColor ("Specular Color", Color) = (1, 1, 1, 1)
		_SpecularGloss ("Gloss Color", Range(8.0, 256)) = 20

    	[KeywordEnum(Phong,BlinnPhong)]_SpecularMode("SpecularMode", int)=0
    }

	SubShader
    {
        Tags { "Queue"="Geometry" "RenderType" = "Opaque" "IgnoreProjector" = "True" "RenderPipeline" = "UniversalPipeline" }

        Pass
        {
            HLSLPROGRAM
            // Required to compile gles 2.0 with standard srp library
            #pragma prefer_hlslcc gles
            #pragma exclude_renderers d3d11_9x
            #pragma vertex vert
            #pragma fragment frag
			#pragma shader_feature _ _SPECULARMODE_PHONG _SPECULARMODE_BLINNPHONG
            #include "Packages/com.unity.render-pipelines.core/ShaderLibrary/Color.hlsl"
            #include "Packages/com.unity.render-pipelines.universal/ShaderLibrary/Core.hlsl"
            #include "Packages/com.unity.render-pipelines.universal/ShaderLibrary/Lighting.hlsl"
            #include "Packages/com.unity.render-pipelines.core/ShaderLibrary/UnityInstancing.hlsl"

            struct appdata {
				float4 vertex : POSITION;
				float3 normal : NORMAL;
			};

			struct v2f {
				float4 positionCS : SV_POSITION;
				float3 positionWS : TEXCOORD0;
				float3 normalWS : TEXCOORD1;
			};

            CBUFFER_START(UnityPerMaterial)
			half4 _DiffuseColor;
			half4 _SpecularColor;
			float _SpecularGloss;
			CBUFFER_END

			v2f vert(appdata v) {
				v2f o = (v2f)0;

				o.positionCS = TransformObjectToHClip(v.vertex.xyz);
				o.normalWS = TransformObjectToWorldNormal(v.normal.xyz);
				o.positionWS = TransformObjectToWorld(v.vertex.xyz);

				return o;
			}

			half4 frag(v2f i) : SV_Target {

				half4 c = 1;

				Light mainLight = GetMainLight();

				// 环境光
				half3 ambient = UNITY_LIGHTMODEL_AMBIENT.xyz;
				c.rgb = ambient;

				// 漫反射
				half3 N = normalize(i.normalWS);
				half3 L = normalize(mainLight.direction);
				half3 diffuse = mainLight.color * _DiffuseColor.rgb * saturate(dot(N, L));
				c.rgb += diffuse; // diffuse * 0.5 + 0.5;

				// 高光
				half3 R = normalize(reflect(-L, N));
				half3 V = normalize(_WorldSpaceCameraPos.xyz - i.positionWS.xyz);

				#if _SPECULARMODE_PHONG
					// phone
					half ROV = dot(R, V);
					half3 specular = mainLight.color * _SpecularColor.rgb * pow(saturate(ROV), _SpecularGloss);
					c.rgb += specular;
				#endif

				#if _SPECULARMODE_BLINNPHONG
					// blinnphong
					half3 H = normalize(L + V);
					half NOH = dot(N, H);
					half3 specular = mainLight.color * _SpecularColor.rgb * pow(max(0, NOH), _SpecularGloss);
					c.rgb += specular;
				#endif

				return c;
			}

            ENDHLSL
        }
    }

    SubShader
    {
        Tags { "RenderType"="Opaque" }

        Pass {
			CGPROGRAM

			#pragma vertex vert
			#pragma fragment frag
			#pragma shader_feature _ _SPECULARMODE_PHONG _SPECULARMODE_BLINNPHONG
			#include "Lighting.cginc"

			struct appdata {
				float4 vertex : POSITION;
				float3 normal : NORMAL;
			};

			struct v2f {
				float4 positionCS : SV_POSITION;
				float3 positionWS : TEXCOORD0;
				float3 normalWS : TEXCOORD1;
			};

			half4 _DiffuseColor;
			half4 _SpecularColor;
			float _SpecularGloss;

			v2f vert(appdata v) {
				v2f o = (v2f)0;

				o.positionCS = UnityObjectToClipPos(v.vertex);
				o.normalWS = UnityObjectToWorldNormal(v.normal);
				o.positionWS = mul(UNITY_MATRIX_M, v.vertex);

				return o;
			}

			half4 frag(v2f i) : SV_Target {

				half4 c = 1;

				// 环境光
				half3 ambient = UNITY_LIGHTMODEL_AMBIENT.xyz;
				c.rgb = ambient;

				// 漫反射
				half3 N = normalize(i.normalWS);
				half3 L = normalize(_WorldSpaceLightPos0.xyz);
				half3 diffuse = _LightColor0.rgb * _DiffuseColor.rgb * saturate(dot(N, L));
				c.rgb += diffuse; // diffuse * 0.5 + 0.5;

				// 高光
				half3 R = normalize(reflect(-L, N));
				half3 V = normalize(_WorldSpaceCameraPos.xyz - i.positionWS.xyz);

				#if _SPECULARMODE_PHONG
					// phone
					half ROV = dot(R, V);
					half3 specular = _LightColor0.rgb * _SpecularColor.rgb * pow(saturate(ROV), _SpecularGloss);
					c.rgb += specular;
				#endif

				#if _SPECULARMODE_BLINNPHONG
					// blinnphong
					half3 H = normalize(L + V);
					half NOH = dot(N, H);
					half3 specular = _LightColor0.rgb * _SpecularColor.rgb * pow(max(0, NOH), _SpecularGloss);
					c.rgb += specular;
				#endif

				return c;
			}

			ENDCG
		}
    }
}
