unity-shader-example-sequenceEffect

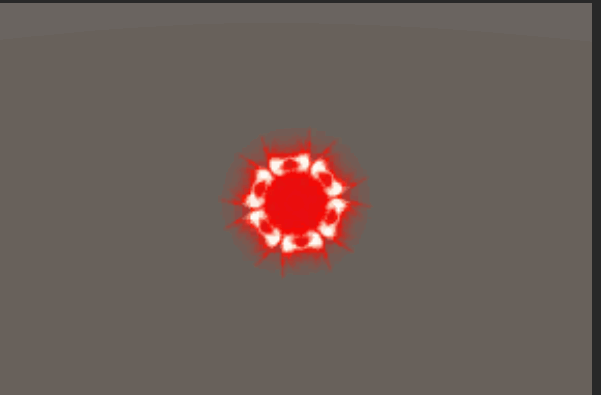

buildin效果图

urp效果图

SequenceEffect.shader

SequenceEffect.shader

Shader "HHF/Example/SequenceEffect"
{
    Properties
    {
        [Enum(UnityEngine.Rendering.BlendMode)]_SrcFactor("SrcFactor",int) = 1
        [Enum(UnityEngine.Rendering.BlendMode)]_DstFactor("DstFactor",int) = 1
        _BaseColor("Base Color",color) = (1,1,1,1)
        [NoScaleOffset]_BaseMap("BaseMap", 2D) = "white" {}
        _Sequence("Row(X) Column(Y) Speed(Z)", vector) = (3,3,3,0)
        [Enum(Billboard,1,VerticalBillboard,0)]_BillboardType("BillboardType",int) = 1
    }

    SubShader
    {
        Tags
        {
            "Queue" = "Transparent"
            "RenderType" = "Transparent"
            "IgnoreProjector" = "True"
            "RenderPipeline" = "UniversalPipeline"
        }

        Blend [_SrcFactor] [_DstFactor]

        Pass
        {
            HLSLPROGRAM
            #pragma prefer_hlslcc gles
            #pragma exclude_renderers d3d11_9x
            #pragma vertex vert
            #pragma fragment frag
            #include "Packages/com.unity.render-pipelines.core/ShaderLibrary/Color.hlsl"
            #include "Packages/com.unity.render-pipelines.universal/ShaderLibrary/Core.hlsl"
            #include "Packages/com.unity.render-pipelines.universal/ShaderLibrary/Lighting.hlsl"
            #include "Packages/com.unity.render-pipelines.universal/ShaderLibrary/ShaderGraphFunctions.hlsl"

            struct appdata
            {
                float4 vertex : POSITION;
                float2 uv : TEXCOORD0;
            };

            struct v2f
            {
                float4 positionCS : SV_POSITION;
                float2 uv : TEXCOORD0;
            };

            CBUFFER_START(UnityPerMaterial)
            half4 _BaseColor;
            half4 _Sequence;
            half _BillboardType;
            CBUFFER_END
            TEXTURE2D (_BaseMap); SAMPLER(sampler_BaseMap); float4 _BaseMap_ST;

            v2f vert(appdata v)
            {
                v2f o = (v2f)0;

                // 构建旋转后的基向量在模型本地空间下的矩阵
                // viewDir相当于是我们自己定义的Z基向量，把相机从世界空间转换到本地空间，而本地空间就是以我们模型的原点为中心点的坐标，此时相机转换后的位置就是我们要的向量了
                float3 viewDir = mul(GetWorldToObjectMatrix(), float4(_WorldSpaceCameraPos, 1)).xyz;
                // 对向量归一化，求出基
                viewDir = normalize(viewDir);
                viewDir.y *= _BillboardType;
                // 假设向上的向量为世界坐标系下的上向量
                float3 upDir = float3(0, 1, 0);
                // 利用叉积（左手法则）计算出向右的向量
                float3 rightDir = normalize(cross(viewDir, upDir));
                // 再利用叉积计算出精确的向上的向量
                upDir = cross(rightDir, viewDir);

                // 方法1：矩阵的写法
                float4x4 M = float4x4(
                rightDir.x, upDir.x, viewDir.x,0,
                rightDir.y, upDir.y, viewDir.y,0,
                rightDir.z, upDir.z, viewDir.z,0,
                0,0,0,1
                );
                float3 newVertex = mul(M, v.vertex).xyz;

                // 方法2：向量乘法的写法
                // float3 newVertex = rightDir * v.vertex.x + upDir * v.vertex.y + viewDir * v.vertex.z;

                o.positionCS = TransformObjectToHClip(newVertex);

                // UV的起始位置（左上角的格子）
                o.uv = float2(v.uv.x/_Sequence.y,v.uv.y/_Sequence.x+1/_Sequence.x*(_Sequence.x-1));
                // 对U方向进行走格偏移
                o.uv.x += frac(floor(_Time.y * _Sequence.z)/_Sequence.y);
                // 对V方向进行走格偏移
                o.uv.y -= frac(floor(_Time.y * _Sequence.z/_Sequence.y)/_Sequence.x);

                return o;
            }

            half4 frag(v2f i) : SV_Target
            {
                half4 c;
                half4 baseMap = SAMPLE_TEXTURE2D(_BaseMap, sampler_BaseMap, i.uv);
                c = baseMap * _BaseColor;
                c.rgb *= c.a;
                return c;
            }
            ENDHLSL
        }
    }

    SubShader
    {
        Tags
        {
            "Queue" = "Transparent"
            "RenderType" = "Transparent"
            "IgnoreProjector" = "True"
        }

        Blend [_SrcFactor] [_DstFactor]

        Pass
        {
            CGPROGRAM
            #pragma vertex vert
            #pragma fragment frag
            #include "UnityCG.cginc"

            struct appdata
            {
                float4 vertex : POSITION;
                float2 uv : TEXCOORD0;
            };

            struct v2f
            {
                float2 uv : TEXCOORD0;
                float4 positionCS : SV_POSITION;
            };

            sampler2D _BaseMap;
            half4 _BaseColor;
            half4 _Sequence;
            fixed _BillboardType;

            v2f vert (appdata v)
            {
                v2f o = (v2f)0;

                // 构建旋转后的基向量在模型本地空间下的矩阵
                // viewDir相当于是我们自己定义的Z基向量，把相机从世界空间转换到本地空间，而本地空间就是以我们模型的原点为中心点的坐标，此时相机转换后的位置就是我们要的向量了
                float3 viewDir = mul(unity_WorldToObject,float4(_WorldSpaceCameraPos,1));
                // 对向量归一化，求出基
                viewDir = normalize(viewDir);
                viewDir.y *= _BillboardType;
                // 假设向上的向量为世界坐标系下的上向量
                float3 upDir = float3(0,1,0);
                // 利用叉积（左手法则）计算出向右的向量
                float3 rightDir = normalize(cross(viewDir,upDir));
                // 再利用叉积计算出精确的向上的向量
                upDir = cross(rightDir,viewDir);

                // 方法1：矩阵的写法
                float4x4 M = float4x4(
                rightDir.x,upDir.x,viewDir.x,0,
                rightDir.y,upDir.y,viewDir.y,0,
                rightDir.z,upDir.z,viewDir.z,0,
                0,0,0,1
                );
                float3 newVertex = mul(M, v.vertex).xyz;

                // 方法2：向量乘法的写法
                // float3 newVertex = rightDir * v.vertex.x + upDir * v.vertex.y + viewDir * v.vertex.z;

                o.positionCS = UnityObjectToClipPos(newVertex);

                // UV的起始位置（左上角的格子）
                o.uv = float2(v.uv.x/_Sequence.y,v.uv.y/_Sequence.x+1/_Sequence.x*(_Sequence.x-1));
                // 对U方向进行走格偏移
                o.uv.x += frac(floor(_Time.y * _Sequence.z)/_Sequence.y);
                // 对V方向进行走格偏移
                o.uv.y -= frac(floor(_Time.y * _Sequence.z/_Sequence.y)/_Sequence.x);

                return o;
            }

            fixed4 frag (v2f i) : SV_Target
            {
                half4 c;
                half4 baseMap = tex2D(_BaseMap, i.uv);
                c = baseMap * _BaseColor;
                c.rgb *= c.a;
                return c;
            }
            ENDCG
        }
    }
}
