unity-shader-example-energyShield

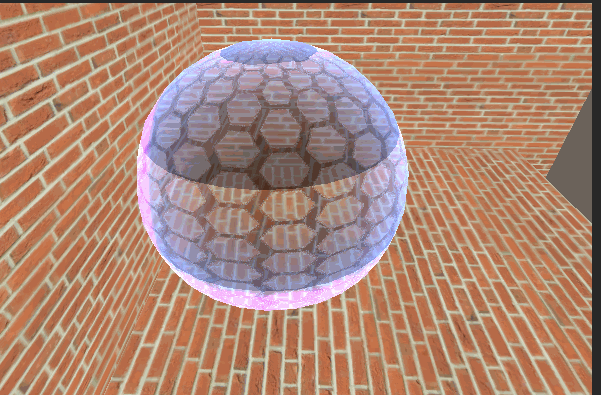

buildin效果图

urp效果图

EnergyShield.shader

EnergyShield.shader

Shader "HHF/Example/EnergyShield"
{
    Properties
    {
        [Header(Base)]
        _MainTex("MainTex", 2D) = "white" {}
        _MainTexIntensity("MainTexIntensity", float) = 0.05

        [Header(Junction)]
        _JunctionColor("JunctionColor", Color) = (1,1,1,1)
        _JunctionFade("JunctinoFade", float) = 3

        [Header(Fresnel)]
        _FresnelColor("FresnelColor",Color) = (1,1,1,1)
        _FresnelPower("FresnelPower", Range(0, 15)) = 5

        [Header(Distort)]
        _DistortBrightness("DistortBrightness",float) = 1
        _DistortIntensity("DistortIntensity",Range(0,1)) = 0.4
        _DistortTiling("DistortTiling", float) = 1
    }

    SubShader
    {
        Tags { "Queue"="Transparent" "RenderType" = "Transparent" "IgnoreProjector" = "True" "RenderPipeline" = "UniversalPipeline" }

        Pass
        {
            // Blend SrcAlpha OneMinusSrcAlpha
            // Blend One One
            HLSLPROGRAM
            // Required to compile gles 2.0 with standard srp library
            #pragma prefer_hlslcc gles
            #pragma exclude_renderers d3d11_9x
            #pragma vertex vert
            #pragma fragment frag
            #include "Packages/com.unity.render-pipelines.core/ShaderLibrary/Color.hlsl"
            #include "Packages/com.unity.render-pipelines.universal/ShaderLibrary/Core.hlsl"
            #include "Packages/com.unity.render-pipelines.universal/ShaderLibrary/Lighting.hlsl"

            struct appdata
            {
                float4 vertex  : POSITION;
                float2 uv : TEXCOORD0;
                half3 normal : NORMAL;
            };

            struct v2f
            {
                float4 positionCS : SV_POSITION;
                float2 uv : TEXCOORD0;
                float3 positionVS : TEXCOORD2;
                half3 normalWS : TEXCOORD3;
                half3 viewWS : TEXCOORD4;
            };

            CBUFFER_START(UnityPerMaterial)
            half _MainTexIntensity;
            half4 _JunctionColor;
            half _JunctionFade;
            half4 _FresnelColor;
            half _FresnelPower;
            half _DistortBrightness;
            half _DistortIntensity;
            half _DistortTiling;
            float4 _MainTex_ST;
            CBUFFER_END
            TEXTURE2D (_MainTex);SAMPLER(sampler_MainTex);
            TEXTURE2D (_CameraDepthTexture);SAMPLER(sampler_CameraDepthTexture);
            TEXTURE2D (_CameraOpaqueTexture);SAMPLER(sampler_CameraOpaqueTexture);

            v2f vert(appdata v)
            {
                v2f o = (v2f)0;
                float3 worldPos = TransformObjectToWorld(v.vertex.xyz);

                o.positionVS = TransformWorldToView(worldPos);
                o.normalWS = TransformObjectToWorldNormal(v.normal);
                o.viewWS = normalize(_WorldSpaceCameraPos - worldPos);
                o.positionCS = TransformWViewToHClip(o.positionVS);
                o.uv = TRANSFORM_TEX(v.uv, _MainTex);
                return o;
            }

            half4 frag(v2f i) : SV_Target
            {
                half4 c = 0;

                // 主纹理
                half4 mainTex = SAMPLE_TEXTURE2D(_MainTex, sampler_MainTex, i.uv + float2(0, _Time.y));
                c = mainTex * _MainTexIntensity;

                // 交界处处理
                float2 screenUV = i.positionCS.xy / _ScreenParams.xy;
                half4 depthMap = SAMPLE_TEXTURE2D(_CameraDepthTexture, sampler_CameraDepthTexture, screenUV);
                half depthZ = LinearEyeDepth(depthMap.r, _ZBufferParams);
                // 片段的z和深度的z坐标系方向不一样，片段的z需要取反才是正确的深度z
                half4 junction = depthZ - (-i.positionVS.z);
                junction *= _JunctionFade;
                junction = 1 - junction;
                junction *= _JunctionColor;
                junction = saturate(junction);
                c += junction;
                // return c;

                // fresnel外发光
                // pow(max(0,dot(N,V)), Intensity)
                half3 N = i.normalWS; // normal(i.normalWS);
                half3 V = i.viewWS; // normal(i.viewWS);
                half NdotV = 1 - saturate(dot(N,V));
                half4 fresnel = pow(abs(NdotV), _FresnelPower);
                fresnel *= _FresnelColor;
                c += fresnel;

                // 扭曲
                float2 distortUV = lerp(screenUV, mainTex.rr, _DistortIntensity);
                half4 opaqueTex = SAMPLE_TEXTURE2D(_CameraOpaqueTexture, sampler_CameraOpaqueTexture, distortUV);
                half4 distort = half4(opaqueTex.rgb,1);
                half flowMask = frac(i.uv.y * _DistortTiling + _Time.y) * 0.5 + 0.5;
                distort *= flowMask * _DistortBrightness;
                c += distort;
                // return distort;

                return c;
            }
            ENDHLSL
        }
    }

    SubShader
    {
        Tags { "Queue"="Transparent" "RenderType" = "Transparent" "IgnoreProjector" = "True" }

        GrabPass{"_GrabTex"}

        Pass
        {
            // Blend SrcAlpha OneMinusSrcAlpha
            // Blend One One
            CGPROGRAM

            #pragma vertex vert
            #pragma fragment frag
            #include "UnityCG.cginc"

            struct appdata
            {
                float4 vertex : POSITION;
                float2 uv : TEXCOORD0;
                half3 normal : NORMAL;
            };

            struct v2f
            {
                float4 positionCS : SV_POSITION;
                float2 uv : TEXCOORD0;
                float3 positionVS : TEXCOORD2;
                half3 normalWS : TEXCOORD3;
                half3 viewWS : TEXCOORD4;
            };

            half _MainTexIntensity;
            half4 _JunctionColor;
            half _JunctionFade;
            half4 _FresnelColor;
            half _FresnelPower;
            half _DistortBrightness;
            half _DistortIntensity;
            half _DistortTiling;

            sampler2D _MainTex;float4 _MainTex_ST;
            sampler2D _CameraDepthTexture;
            sampler2D _GrabTex;

            v2f vert(appdata v)
            {
                v2f o = (v2f)0;
                float3 positionWS = mul(unity_ObjectToWorld, v.vertex);

                o.positionVS = UnityObjectToViewPos(v.vertex);
                o.normalWS = UnityObjectToWorldNormal(v.normal);
                o.viewWS = normalize(_WorldSpaceCameraPos - positionWS);
                o.positionCS = mul(UNITY_MATRIX_P, float4(o.positionVS, 1));
                o.uv = TRANSFORM_TEX(v.uv, _MainTex);
                return o;
            }

            half4 frag(v2f i) : SV_Target
            {
                half4 c = 0;

                // 主纹理
                half4 baseMap = tex2D(_MainTex, i.uv + float2(0,_Time.y));
                c = baseMap * _MainTexIntensity;

                // 交界处处理
                float2 screenUV = i.positionCS.xy / _ScreenParams.xy;
                half4 depthMap = tex2D(_CameraDepthTexture, screenUV);
                half depthZ = LinearEyeDepth(depthMap.r);
                // 片段的z和深度的z坐标系方向不一样，片段的z需要取反才是正确的深度z
                half4 junction = depthZ - (-i.positionVS.z);
                junction *= _JunctionFade;
                junction = 1 - junction;
                junction *= _JunctionColor;
                junction = saturate(junction);
                c += junction;

                // fresnel外发光
                // pow(max(0,dot(N,V)),Intensity)
                half3 N = i.normalWS;
                half3 V = i.viewWS;
                half NdotV = 1 - saturate(dot(N,V));
                half4 fresnel = pow(abs(NdotV),_FresnelPower);
                fresnel *= _FresnelColor;
                c += fresnel;

                // 扭曲
                float2 distortUV = lerp(screenUV, baseMap.rr, _DistortIntensity);
                half4 opaqueTex = tex2D(_GrabTex, distortUV);
                half4 distort = half4(opaqueTex.rgb, 1);
                half flowMask = frac(i.uv.y * _DistortTiling + _Time.y) * 0.5 + 0.5;
                distort *= flowMask * _DistortBrightness;
                c += distort;

                return c;
            }
            ENDCG
        }
    }

}
