unity-shader-example-depthDecal

Posted on Edited on

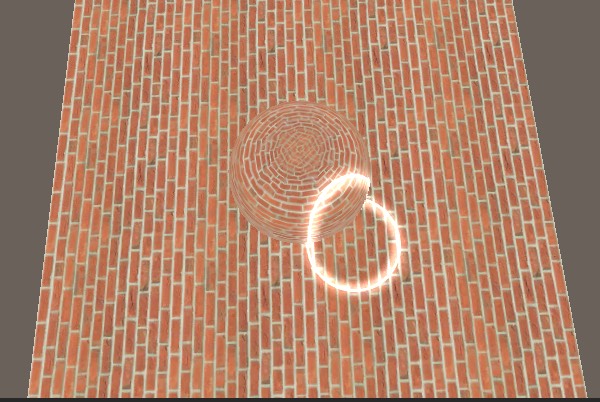

buildin效果图

urp效果图

DepthDecal.shader

DepthDecal.shader
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
Shader "HHF/Example/DepthDecal"
{
    Properties
    {
        _BaseColor("Base Color",color) = (1,1,1,1)
        _BaseMap("BaseMap", 2D) = "white" {}
    }

    SubShader
    {
        Tags { "Queue"="Transparent" "RenderType" = "Transparent" "IgnoreProjector" = "True" "RenderPipeline" = "UniversalPipeline" }

        Pass
        {
            Blend One One

            HLSLPROGRAM
            // Required to compile gles 2.0 with standard srp library
            #pragma prefer_hlslcc gles
            #pragma exclude_renderers d3d11_9x
            #pragma vertex vert
            #pragma fragment frag
            #include "Packages/com.unity.render-pipelines.core/ShaderLibrary/Color.hlsl"
            #include "Packages/com.unity.render-pipelines.universal/ShaderLibrary/Core.hlsl"
            #include "Packages/com.unity.render-pipelines.universal/ShaderLibrary/Lighting.hlsl"

            struct appdata
            {
                float4 vertex : POSITION;
                float2 uv : TEXCOORD0;
            };

            struct v2f
            {
                float4 positionCS : SV_POSITION;
                float2 uv : TEXCOORD0;
                float3 positionVS : TEXCOORD1;
            };

            CBUFFER_START(UnityPerMaterial)
            half4 _BaseColor;
            float4 _BaseMap_ST;
            CBUFFER_END
            TEXTURE2D (_BaseMap);SAMPLER(sampler_BaseMap);
            TEXTURE2D(_CameraDepthTexture);SAMPLER(sampler_CameraDepthTexture);
            SAMPLER(smp);

            v2f vert(appdata v)
            {
                v2f o = (v2f)0;

                o.positionCS = TransformObjectToHClip(v.vertex.xyz);
                o.uv = TRANSFORM_TEX(v.uv, _BaseMap);
                o.positionVS = TransformWorldToView(TransformObjectToWorld(v.vertex.xyz));

                return o;
            }

            half4 frag(v2f i) : SV_Target
            {
                half4 c = 0;

                // 深度计算
                float2 screenUV = i.positionCS.xy / _ScreenParams.xy;
                half4 depthMap = SAMPLE_TEXTURE2D(_CameraDepthTexture, sampler_CameraDepthTexture, screenUV);
                half depthZ = LinearEyeDepth(depthMap.r, _ZBufferParams);

                // 计算深度图上的像素在观察空间下的坐标
                float4 depthVS = 1;
                depthVS.xy = i.positionVS.xy * depthZ / -i.positionVS.z;
                depthVS.z = depthZ;
                // 计算深度图上的像素在世界空间下的坐标
                float3 depthWS = mul(unity_CameraToWorld, depthVS).xyz;
                // 计算深度图上的像素在本地空间下的坐标
                float3 depthOS = mul(unity_WorldToObject, float4(depthWS, 1)).xyz;

                // 采样主纹理
                // depthOS.xy 不是固定的，看模型决定，这里用的是unity自带的 quad
                float2 uv = depthOS.xy + 0.5;
                half4 baseMap = SAMPLE_TEXTURE2D(_BaseMap, sampler_BaseMap, saturate(uv));
                c = baseMap * _BaseColor;

                return c;
            }
            ENDHLSL
        }
    }

    SubShader
    {
        Tags { "Queue"="Transparent" "RenderType" = "Transparent" "IgnoreProjector" = "True" }

        Pass
        {
            Blend One One

            CGPROGRAM

            #pragma vertex vert
            #pragma fragment frag
            #include "UnityCG.cginc"

            struct appdata
            {
                float4 vertex : POSITION;
                float2 uv : TEXCOORD0;
            };

            struct v2f
            {
                float4 positionCS : SV_POSITION;
                float2 uv : TEXCOORD0;
                float3 positionVS : TEXCOORD1;
            };

            half4 _BaseColor;
            sampler2D _BaseMap; float4 _BaseMap_ST;
            sampler2D _CameraDepthTexture;

            v2f vert(appdata v)
            {
                v2f o = (v2f)0;

                o.positionCS = UnityObjectToClipPos(v.vertex);
                o.uv = TRANSFORM_TEX(v.uv, _BaseMap);
                o.positionVS = mul(UNITY_MATRIX_MV, float4(v.vertex.xyz, 1));

                return o;
            }

            half4 frag(v2f i) : SV_Target
            {
                half4 c = 0;

                // 深度计算
                float2 screenUV = i.positionCS.xy / _ScreenParams.xy;
                half4 depthMap = tex2D(_CameraDepthTexture, screenUV);
                half depthZ = LinearEyeDepth(depthMap.r);

                // 计算深度图上的像素在观察空间下的坐标
                float4 depthVS = 1;
                depthVS.xy = i.positionVS.xy * depthZ / -i.positionVS.z;
                depthVS.z = depthZ;
                // 计算深度图上的像素在世界空间下的坐标
                float3 depthWS = mul(unity_CameraToWorld, depthVS);
                // 计算深度图上的像素在本地空间下的坐标
                float3 depthOS = mul(unity_WorldToObject, float4(depthWS, 1));

                // 采样主纹理
                // depthOS.xy 不是固定的，看模型决定，这里用的是unity自带的 quad
                float2 uv = depthOS.xy + 0.5;
                half4 baseMap = tex2D(_BaseMap, uv);
                c = baseMap * _BaseColor;

                return c;
            }
            ENDCG
        }
    }
}
