unity-doc-dots

概念

DOTS (Data-Oriented Tech Stack)，主要包含Entity Component System（ECS）、Job System、Burst Compiler

DOTS = 缓存友好 + SIMD + 多线程 + struct去GC + LLVM burst编译器优化

• 充分利用多核处理器，多线程处理让游戏的运行速度更快，更高效。
• SIMD：单指令，多数据流的指令集优化。
• Job System：C#任务系统，用于高效运行多线程代码。
• ECS：实体组件系统，用于默认编写高性能代码。
• Burst Compiler：Burst编译器，用于生产高度优化的本地代码。
• Job System和ECS是两个不同的概念，两者这在一起才能发挥最大的优势，当前也可以分开使用。

ECS

使用Entity的方式将数据分离出来，然后在需要的地方提供相应的数据，其中System是为了处理Entity中数据的具体逻辑，还有一个很重要的部分”Filter”进行数据的过滤。简单来讲ECS就是数据与数据处理的一个关系。

Entity-Component-System的优点

• 高性能
• 易编写出高度优化的代码
• 易编写出可重用的代码
• 数据在内存中是紧密排列的
• 和Job System、Burst一起可以获得更高的性能

Pure ECS

Pure ECS系统特点:

• Entities是一个新的Gameobjects
• 实体上没有多余的Mono脚本：数据存储在Components上；逻辑执行处理在System里面
• 可以利用C# 的 Job System系统来进行工作。

Hybrid ECS

Hybrid ECS系统特点：

• 包括所有Pure ECS 的功能
• 一些特别的工具类：把GameObject当成Entities；把Mono脚本当成Components
• 更多的支持原生Unity的类

JobSystem

Unity 对 CPU 多核编程的应用。通过把工作分散到 CPU 的各个核心上来
大大提升运行效率。而 ECS 跟他之间的搭配则是由于 ECS 的 System 部分天
然是以批量处理为核心的，因此只要稍加改动，就可以转变为批量的分 Job 交
到多核去处理，实现性能的极大提升。

Burst Compiler

Unity 开发的全新的快速编译器，使得项目性能有了更大的提升。

链接

[dotsApi]https://docs.unity3d.com/Packages/com.unity.collections@1.3/api/Unity.Collections.NativeParallelHashMap-2.html

使用

使用参考-2019

平台：mac
版本：2019.4.13f1

环境搭建

• 安装package Entities 0.1.1
• 安装package Mathematics 1.1.0
• 安装package Hybrid Render 0.1.1
• 安装package Jobs 0.1.1
• 安装package Collection 0.1.1
• 安装package Burst 1.1.2

Pure Ecs

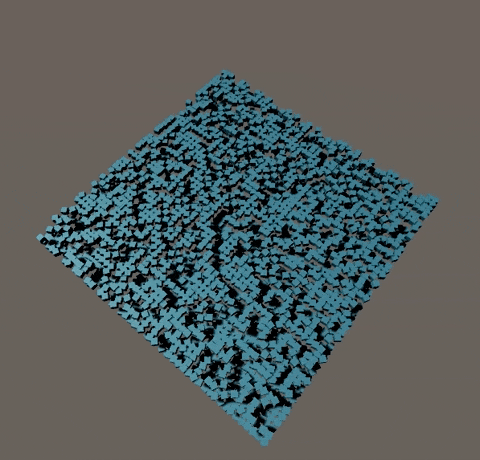

例子运行图

EntityMgr.cs

using Unity.Collections;
using Unity.Entities;
using Unity.Mathematics;
using Unity.Rendering;
using Unity.Transforms;
using UnityEngine;

namespace PureEcs
{
    public class EntityMgr : MonoBehaviour
    {
        public GameObject GoPrefab;     // 预知体
        public int XNum = 10;           // x轴数量
        public int ZNum = 10;           // z轴数量

        private NativeArray<Entity> entityArray; // 实体数组

        private void Start()
        {
            GameObject goInst = GameObject.Instantiate(GoPrefab);
            Mesh _mesh = goInst.GetComponent<MeshFilter>().mesh;
            Material _material = goInst.GetComponent<MeshRenderer>().material;

            // 创建实体管理器
            EntityManager entityMgr = World.Active.EntityManager;

            // 创建实体原型类型
            EntityArchetype entityAr = entityMgr.CreateArchetype(
                typeof(Rotate),
                typeof(Movement),
                typeof(Translation),
                typeof(Rotation),
                typeof(RenderMesh),
                typeof(LocalToWorld));

            // 创建本地集合类型
            entityArray = new NativeArray<Entity>(XNum * ZNum, Allocator.Persistent);

            // 创建实体
            entityMgr.CreateEntity(entityAr, entityArray);
            int idx = 0;
            for (int x = 0; x < XNum; x++)
            {
                for (int z = 0; z < ZNum; z++)
                {
                    entityMgr.SetComponentData(entityArray[idx], new Rotate {RotateSpeed = UnityEngine.Random.Range(5, 15)});
                    entityMgr.SetComponentData(entityArray[idx], new Movement {MoveSpeed = UnityEngine.Random.Range(1, 5)});
                    entityMgr.SetComponentData(entityArray[idx], new Translation {Value = new Vector3(x - XNum / 2, noise.cnoise(new float2(x, z)), z - ZNum / 2)});
                    entityMgr.SetComponentData(entityArray[idx], new Rotation{Value = quaternion.identity});

                    // 渲染
                    entityMgr.SetSharedComponentData(entityArray[idx], new RenderMesh
                    {
                        material = _material,
                        mesh = _mesh
                    });

                    idx++;
                }
            }
        }

        private void OnDestroy()
        {
            if (entityArray.IsCreated)
            {
                entityArray.Dispose();
            }
        }
    }
}

MovementSystem.cs

using Unity.Entities;
using Unity.Transforms;
using UnityEngine;

namespace PureEcs
{
    public struct Movement : IComponentData
    {
        public float MoveSpeed;
    }

    public class MovementSystem : ComponentSystem
    {
        protected override void OnUpdate()
        {
            Entities.ForEach((ref Translation translation, ref Movement moving) =>
            {
                translation.Value.y += moving.MoveSpeed * Time.deltaTime;
                if (translation.Value.y > 4)
                {
                    moving.MoveSpeed = -Mathf.Abs(moving.MoveSpeed);
                }
                else if (translation.Value.y < -1)
                {
                    moving.MoveSpeed = Mathf.Abs(moving.MoveSpeed);
                }
            });
        }
    }
}

RotateSystem.cs

using Unity.Entities;
using Unity.Mathematics;
using Unity.Transforms;
using UnityEngine;

namespace PureEcs
{
    public struct Rotate : IComponentData
    {
        public float RotateSpeed;
    }

    public class RotateSystem : ComponentSystem
    {
        protected override void OnUpdate()
        {
            Entities.ForEach((ref Rotate rotate, ref Rotation rotation) =>
            {
                rotation.Value = math.mul(math.normalize(rotation.Value),
                    quaternion.AxisAngle(math.up(), rotate.RotateSpeed * Time.deltaTime));
            });
        }
    }
}

Hybrid ECS

例子运行图

EntityMgr.cs

using Unity.Entities;
using Unity.Mathematics;
using Unity.Transforms;
using UnityEngine;
using Random = UnityEngine.Random;

namespace HybridEcs
{
    public class EntityMgr : MonoBehaviour
    {
        public GameObject goPrefab; // 预知体
        public int XNum = 10; // x轴数量
        public int ZNum = 10; // z轴数量

        private Entity entity; // 实体对象
        private EntityManager entityMgr; // 实体管理器

        private void Start()
        {
            // 游戏对象转实体
            entity = GameObjectConversionUtility.ConvertGameObjectHierarchy(goPrefab, World.Active);

            // 创建实体管理器
            entityMgr = World.Active.EntityManager;

            // 创建大量实体
            for (int x = 0; x < XNum; x++)
            {
                for (int z = 0; z < ZNum; z++)
                {
                    Entity tmpEntity = entityMgr.Instantiate(entity);
                    entityMgr.SetComponentData(tmpEntity, new Translation {Value = new float3(x - XNum / 2, noise.cnoise(new float2(x, z)), z - ZNum / 2)});
                    entityMgr.SetComponentData(tmpEntity, new Rotation{Value = quaternion.identity});

                    entityMgr.AddComponentData(tmpEntity, new Rotate {RotateSpeed = UnityEngine.Random.Range(5, 15)});
                    entityMgr.AddComponentData(tmpEntity, new Movement() {MoveSpeed = Random.Range(1, 5)});
                }
            }

        }
    }
}

MovementSystem.cs

using System.Collections;
using Unity.Entities;
using Unity.Transforms;
using UnityEngine;

namespace HybridEcs
{
    public struct Movement : IComponentData
    {
        public float MoveSpeed;
    }

    public class MovementSystem : ComponentSystem
    {
        protected override void OnUpdate()
        {
            Entities.ForEach((ref Translation translation, ref Movement movement) =>
            {
                translation.Value.y += movement.MoveSpeed * Time.deltaTime;

                if (translation.Value.y > 4)
                {
                    movement.MoveSpeed = -Mathf.Abs(movement.MoveSpeed);
                } else if (translation.Value.y < -1)
                {
                    movement.MoveSpeed = Mathf.Abs(movement.MoveSpeed);
                }

            });
        }
    }
}

RotateSystem.cs

using Unity.Entities;
using Unity.Mathematics;
using Unity.Transforms;
using UnityEngine;

namespace HybridEcs
{
    public struct Rotate : IComponentData
    {
        public float RotateSpeed;
    }

    public class RotateSystem : ComponentSystem
    {
        protected override void OnUpdate()
        {
            Entities.ForEach((ref Rotate rotate, ref Rotation rotation) =>
            {
                rotation.Value = math.mul(math.normalize(rotation.Value),
                    quaternion.AxisAngle(math.up(), rotate.RotateSpeed * Time.deltaTime));
            });
        }
    }
}

JobSystem

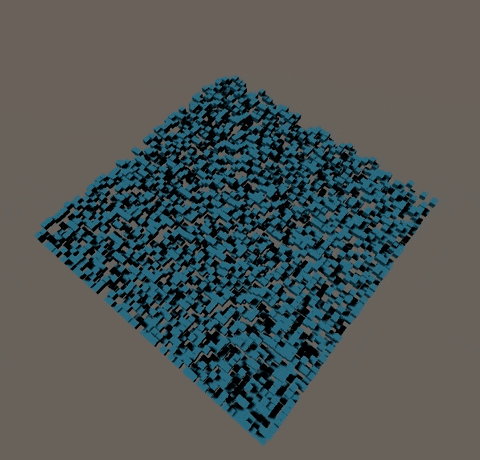

例子运行图

TestJob.cs

using Unity.Burst;
using Unity.Collections;
using Unity.Jobs;
using Unity.Mathematics;
using UnityEngine;

namespace Jobs
{
    public class TestJob : MonoBehaviour
    {
        public int DoTaskNum = 10;      // 同时执行任务数量
        public bool UseDotsJob = false; // 是否启用dots的job来执行任务

        void Update()
        {
            float startTime = Time.realtimeSinceStartup;

            if (UseDotsJob)
            {
                NativeList<JobHandle> listJob = new NativeList<JobHandle>(Allocator.Temp);
                for(int i = 0; i < DoTaskNum; i++)
                {
                    JobHandle jobHandle = DoDotsTask();
                    listJob.Add(jobHandle);
                }

                JobHandle.CompleteAll(listJob);
            }
            else
            {
                for (int i = 0; i < DoTaskNum; i++)
                {
                    DoMonoTask();
                }
            }

            // Debug.LogFormat("task cost time : {0}ms useJob({1})", (Time.realtimeSinceStartup - startTime) * 1000, UseDotsJob);
        }

        private void DoMonoTask()
        {
            Task.ComplexTask();
        }

        private JobHandle DoDotsTask()
        {
            DotsJob job = new DotsJob();
            return job.Schedule();
        }
    }

    [BurstCompile]
    public struct DotsJob : IJob
    {
        public void Execute()
        {
            Task.ComplexTask();
        }
    }

    public static class Task
    {
        public static void SimpleTask()
        {
            float value = 0;
            for (int i = 0; i < 500; i++)
            {
                value = math.exp10(math.sqrt(value));
            }
        }

        public static void ComplexTask()
        {
            float value = 0;
            for (int i = 0; i < 50000; i++)
            {
                value = math.exp10(math.sqrt(value));
            }
        }
    }

}

TestParallelJob.cs

using System;
using System.Collections;
using System.Collections.Generic;
using Unity.Burst;
using Unity.Collections;
using Unity.Jobs;
using Unity.Mathematics;
using UnityEngine;
using UnityEngine.Jobs;

namespace Jobs
{
    public enum GoJobRunType
    {
        MONO,
        PARALLEL_FOR,
        PARALLEL_FOR_TRANSFORM
    }

    public class GoInfo
    {
        public Transform transform;
        public float MoveSpeed;
    }

    public class TestParallelJob : MonoBehaviour
    {
        public GameObject Prefab;       // 预知体
        public int XNum = 10;           // x轴数量
        public int ZNum = 10;           // z轴数量
        public GoJobRunType RunType = GoJobRunType.MONO;

        private List<GoInfo> listGo = new List<GoInfo>();

        private void Start()
        {
            for (int x = 0; x < XNum; x++)
            {
                for (int z = 0; z < ZNum; z++)
                {
                    Vector3 pos = new Vector3(x - XNum / 2, noise.cnoise(new float2(x, z)), z - ZNum / 2);
                    GameObject goInst = Instantiate(Prefab, pos, quaternion.identity);

                    GoInfo goInfo = new GoInfo();
                    goInfo.transform = goInst.transform;
                    goInfo.MoveSpeed = UnityEngine.Random.Range(1f, 5);

                    listGo.Add(goInfo);
                }
            }
        }

        private void Update()
        {
            float startTime = Time.realtimeSinceStartup;

            if (RunType == GoJobRunType.MONO)
            {
                DoMonoTask();
            } else if (RunType == GoJobRunType.PARALLEL_FOR){
                NativeArray<float3> listPos = new NativeArray<float3>(listGo.Count, Allocator.TempJob);
                NativeArray<float> listMoveSpeed = new NativeArray<float>(listGo.Count, Allocator.TempJob);

                for (int i = 0; i < listGo.Count; i++)
                {
                    listPos[i] = listGo[i].transform.position;
                    listMoveSpeed[i] = listGo[i].MoveSpeed;
                }

                DotsParallelJob job = new DotsParallelJob()
                {
                    listPos = listPos,
                    listMoveSpeed = listMoveSpeed,
                    deltaTime = Time.deltaTime,
                };

                // 参数1：指定总共子线程执行数据数量
                // 参数2：每个子线程以下处理多少次
                JobHandle jobHandle = job.Schedule(listGo.Count, ZNum);
                jobHandle.Complete();

                for (int i = 0; i < listGo.Count; i++)
                {
                    listGo[i].transform.position = listPos[i];
                    listGo[i].MoveSpeed = listMoveSpeed[i];
                }

                listPos.Dispose();
                listMoveSpeed.Dispose();

            } else if (RunType == GoJobRunType.PARALLEL_FOR_TRANSFORM)
            {
                TransformAccessArray listTf = new TransformAccessArray(listGo.Count);
                NativeArray<float> listMoveSpeed = new NativeArray<float>(listGo.Count, Allocator.TempJob);

                for (int i = 0; i < listGo.Count; i++)
                {
                    listTf.Add(listGo[i].transform);
                    listMoveSpeed[i] = listGo[i].MoveSpeed;
                }

                DotsParallelJobTransform job = new DotsParallelJobTransform()
                {
                    listMoveSpeed = listMoveSpeed,
                    deltaTime = Time.deltaTime,
                };

                JobHandle jobHandle = job.Schedule(listTf);
                jobHandle.Complete();

                for (int i = 0; i < listGo.Count; i++)
                {
                    listGo[i].MoveSpeed = listMoveSpeed[i];
                }

                listMoveSpeed.Dispose();
                listTf.Dispose();
            }

            // Debug.LogFormat("task cost time : {0}ms useJob({1})", (Time.realtimeSinceStartup - startTime) * 1000, UseDotsJob);
        }

        private void DoMonoTask()
        {
            foreach (var goInfo in listGo)
            {
                Vector3 newPos = goInfo.transform.position + new Vector3(0, goInfo.MoveSpeed * Time.deltaTime);
                goInfo.transform.position = newPos;

                if (newPos.y > 4)
                {
                    goInfo.MoveSpeed = -math.abs(goInfo.MoveSpeed);
                } else if (newPos.y < -1)
                {
                    goInfo.MoveSpeed = math.abs(goInfo.MoveSpeed);
                }

                Task.SimpleTask();
            }
        }
    }

    [BurstCompile]
    public struct DotsParallelJob : IJobParallelFor
    {
        public NativeArray<float3> listPos;          // 所有物体的坐标列表
        public NativeArray<float> listMoveSpeed;      // 物体移动速度列表
        public float deltaTime;                     // 帧时间

        public void Execute(int index)
        {
            listPos[index] += new float3(0, listMoveSpeed[index] * deltaTime, 0);
            if (listPos[index].y > 4)
            {
                listMoveSpeed[index] = -math.abs(listMoveSpeed[index]);
            } else if (listPos[index].y < -1)
            {
                listMoveSpeed[index] = math.abs(listMoveSpeed[index]);
            }

            Task.SimpleTask();
        }
    }

    public struct DotsParallelJobTransform : IJobParallelForTransform
    {
        public NativeArray<float> listMoveSpeed;      // 物体移动速度列表
        public float deltaTime;                     // 帧时间

        public void Execute(int index, TransformAccess transform)
        {
            transform.position += new Vector3(0, listMoveSpeed[index] * deltaTime, 0);
            if (transform.position.y > 4)
            {
                listMoveSpeed[index] = -math.abs(listMoveSpeed[index]);
            } else if (transform.position.y < -1)
            {
                listMoveSpeed[index] = math.abs(listMoveSpeed[index]);
            }

            Task.SimpleTask();
        }
    }
}

dots实战-简单打怪物

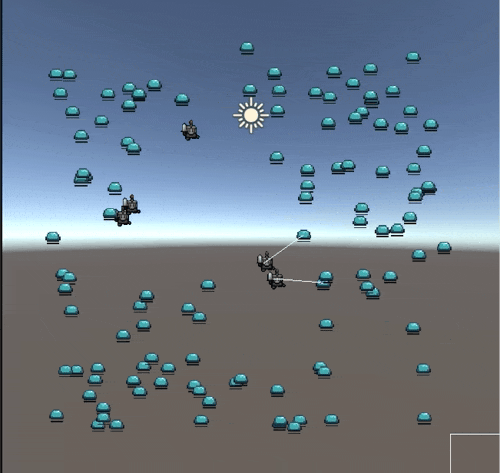

例子运行图

EntityMgr.cs

using Unity.Entities;
using Unity.Mathematics;
using Unity.Transforms;
using UnityEngine;

namespace KillMonster
{
    public class EntityMgr : MonoBehaviour
    {
        public int HeroNum = 5;                 // 默认英雄数量
        public int EnemyNum = 100;              // 默认敌人数量

        public float EnemyCreateStride = 0.1f;  // 敌人创建间隔
        public int EnemyCreateSpeed = 10;       // 敌人创建速度

        public GameObject HeroPrefab;           // 英雄预知体
        public GameObject EnemyPrefab;          // 敌人预知体

        private float enemyCreateWait;          // 下一次敌人创建等待时间

        private Entity entityHero;              // 英雄实体
        private Entity entityEnemy;             // 敌人实体
        private EntityManager entityMgr;        // ecs实体管理器

        private void Start()
        {
            entityMgr = World.Active.EntityManager;

            // 游戏对象转实体
            entityHero = GameObjectConversionUtility.ConvertGameObjectHierarchy(HeroPrefab, World.Active);
            entityEnemy = GameObjectConversionUtility.ConvertGameObjectHierarchy(EnemyPrefab, World.Active);

            for (int i = 0; i < HeroNum; i++)
            {
                CreateOneHero();
            }

            for (int i = 0; i < EnemyNum; i++)
            {
                CreateOneEnemy();
            }
        }

        private void Update()
        {
            enemyCreateWait -= Time.deltaTime;
            if (enemyCreateWait > 0)
            {
                return;
            }

            for (int i = 0; i < EnemyCreateSpeed; i++)
            {
                CreateOneEnemy();
            }

            enemyCreateWait = EnemyCreateStride;
        }

        /// <summary>
        /// 创建一个英雄
        /// </summary>
        private void CreateOneHero()
        {
            Entity tmpEntity = entityMgr.Instantiate(entityHero);
            entityMgr.SetComponentData(tmpEntity, new Translation {Value = new float3(UnityEngine.Random.Range(-2, 2f), UnityEngine.Random.Range(-2, 2f), 0) });
            entityMgr.SetComponentData(tmpEntity, new Rotation{Value = quaternion.identity});
            entityMgr.AddComponentData(tmpEntity, new Hero{MoveSpeed = 5});
            entityMgr.AddComponentData(tmpEntity, new BaseEntity{EntityType = EntityType.HERO});
        }

        /// <summary>
        /// 创建一个敌人
        /// </summary>
        private void CreateOneEnemy()
        {
            Entity tmpEntity = entityMgr.Instantiate(entityEnemy);
            entityMgr.SetComponentData(tmpEntity, new Translation {Value = new float3(UnityEngine.Random.Range(-5f, 5f), UnityEngine.Random.Range(-5f, 5f), 0) });
            entityMgr.SetComponentData(tmpEntity, new Rotation{Value = quaternion.identity});
            entityMgr.AddComponentData(tmpEntity, new Enemy());
            entityMgr.AddComponentData(tmpEntity, new BaseEntity{EntityType = EntityType.ENEMY});
        }
    }
}

EntityComponent.cs

using Unity.Entities;

namespace KillMonster
{
    public enum EntityType
    {
        HERO,
        ENEMY,
    }

    public struct BaseEntity : IComponentData
    {
        public EntityType EntityType;
    }

    public struct Hero : IComponentData
    {
        public float MoveSpeed; // 移动速度
    }

    public struct Enemy : IComponentData
    {

    }

    public struct HadEnemy : IComponentData
    {
        public Entity Enemy;
    }
}

EntitySystem.cs

#define FIND_ENEMY_SYSTEM_SIMPLE_

using Unity.Burst;
using Unity.Collections;
using Unity.Entities;
using Unity.Jobs;
using Unity.Mathematics;
using Unity.Transforms;
using UnityEngine;

namespace KillMonster
{
    public struct BlockEntityInfo
    {
        public Entity Entity;
        public float3 Position;
        public BaseEntity BaseEntity;
    }

    /// <summary>
    /// 实体分块功能
    /// </summary>
    public class EntityBlockSystem : ComponentSystem
    {
        /// <summary>
        /// 实体分块信息映射
        /// key =》分块id
        /// val =》实体信息
        /// </summary>
        public static NativeMultiHashMap<int, BlockEntityInfo> MapBlockEntityInfo;

        protected override void OnCreate()
        {
            MapBlockEntityInfo = new NativeMultiHashMap<int, BlockEntityInfo>(0, Allocator.TempJob);

            base.OnCreate();
        }

        protected override void OnDestroy()
        {
            MapBlockEntityInfo.Dispose();

            base.OnDestroy();
        }

        protected override void OnUpdate()
        {
            EntityQuery entityQuery = GetEntityQuery(typeof(Translation), typeof(BaseEntity));

            MapBlockEntityInfo.Clear();
            if (entityQuery.CalculateEntityCount() > MapBlockEntityInfo.Capacity)
            {
                MapBlockEntityInfo.Capacity = entityQuery.CalculateEntityCount();
            }

            SetQuadrantDataHashMapJob setQuadrantDataHashMapJob = new SetQuadrantDataHashMapJob()
            {
                quadrantMultiHashMap = MapBlockEntityInfo.AsParallelWriter()
            };

            JobHandle jobHandle = JobForEachExtensions.Schedule(setQuadrantDataHashMapJob, entityQuery);
            jobHandle.Complete();

            DebugDrawQuadrant(Help.GetMouseWorldPosition());
            Debug.Log(GetEntityCountInHashMap(MapBlockEntityInfo, Help.CalcPositionBlockId(Help.GetMouseWorldPosition())));
        }



        private static void DebugDrawQuadrant(float3 position)
        {
            Vector3 lowerLeft = new Vector3(math.floor(position.x / Help.BLOCK_SIZE) * Help.BLOCK_SIZE, math.floor(position.y / Help.BLOCK_SIZE) * Help.BLOCK_SIZE, 0);
            Debug.DrawLine(lowerLeft, lowerLeft + new Vector3(+1, +0) * Help.BLOCK_SIZE);
            Debug.DrawLine(lowerLeft, lowerLeft + new Vector3(0, 1) * Help.BLOCK_SIZE);
            Debug.DrawLine(lowerLeft + new Vector3(+1, +0) * Help.BLOCK_SIZE, lowerLeft + new Vector3(1, 1) * Help.BLOCK_SIZE);
            Debug.DrawLine(lowerLeft + new Vector3(0, 1) * Help.BLOCK_SIZE, lowerLeft + new Vector3(1, 1) * Help.BLOCK_SIZE);
            // Debug.Log(GetPositionHashMapKey(position) + " " + position);
        }

        public static int GetEntityCountInHashMap(NativeMultiHashMap<int, BlockEntityInfo> quadrantMultiHashMap, int hashMapKey)
        {
            BlockEntityInfo quadrantData;
            NativeMultiHashMapIterator<int> nativeMultiHashMapIterator;
            int count = 0;
            if (quadrantMultiHashMap.TryGetFirstValue(hashMapKey, out quadrantData, out nativeMultiHashMapIterator))
            {
                do
                {
                    count++;
                } while (quadrantMultiHashMap.TryGetNextValue(out quadrantData, ref nativeMultiHashMapIterator));
            }

            return count;
        }

        [BurstCompile]
        private struct SetQuadrantDataHashMapJob : IJobForEachWithEntity<Translation, BaseEntity>
        {
            public NativeMultiHashMap<int, BlockEntityInfo>.ParallelWriter quadrantMultiHashMap;

            public void Execute(Entity entity, int index, ref Translation translation, ref BaseEntity quadrantEntity)
            {
                int blockId = Help.CalcPositionBlockId(translation.Value);
                quadrantMultiHashMap.Add(blockId, new BlockEntityInfo
                {
                    Entity = entity,
                    Position = translation.Value,
                    BaseEntity = quadrantEntity,
                });
            }
        }


    }

    #if FIND_ENEMY_SYSTEM_SIMPLE
    /// <summary>
    /// 寻找敌人功能
    /// 没有任何的优化
    /// </summary>
    public class FindEnemySystem : ComponentSystem
    {
        protected override void OnUpdate()
        {
            Entities.WithNone<HadEnemy>().WithAll<Hero>().ForEach((Entity entity, ref Translation translation) =>
            {
                float3 playerPos = translation.Value;
                Entity closestEnemy = Entity.Null;
                float3 closestEnemyPos = float3.zero;
                float closestDistSqr = -1;

                Entities.WithAll<Enemy>().ForEach((Entity enemy, ref Translation translationEnemy) =>
                {
                    if (closestEnemy == Entity.Null)
                    {
                        // 还没有敌人
                        closestEnemy = enemy;
                        closestEnemyPos = translationEnemy.Value;
                        closestDistSqr = math.distancesq(playerPos, closestEnemyPos);
                        return;
                    }

                    float enemyDistSqr = math.distancesq(playerPos, translationEnemy.Value);
                    if (enemyDistSqr < closestDistSqr)
                    {
                        closestEnemy = enemy;
                        closestEnemyPos = translationEnemy.Value;
                        closestDistSqr = enemyDistSqr;
                    }
                });

                if (closestEnemy != Entity.Null)
                {
                    PostUpdateCommands.AddComponent(entity, new HadEnemy(){Enemy = closestEnemy});
                }
            });
        }
    }
    #else
    /// <summary>
    /// 寻找敌人功能
    /// job + 敌人分块
    /// </summary>
    public class FindEnemySystem : JobComponentSystem
    {
        private struct EntityWithPosition
        {
            public Entity Entity;
            public float3 Position;
        }

        private EndSimulationEntityCommandBufferSystem commandBufferSystem;

        protected override void OnCreate()
        {
            commandBufferSystem = World.GetOrCreateSystem<EndSimulationEntityCommandBufferSystem>();

            base.OnCreate();
        }

        protected override JobHandle OnUpdate(JobHandle inputDeps)
        {
            EntityQuery heroQuery = GetEntityQuery(typeof(Hero), ComponentType.Exclude<HadEnemy>());
            NativeArray<Entity> arrHeroClosestEnemy = new NativeArray<Entity>(heroQuery.CalculateEntityCount(), Allocator.TempJob);

            FindTargetJobWithBlock findTargetJob = new FindTargetJobWithBlock
            {
                MapAllEntity = EntityBlockSystem.MapBlockEntityInfo,
                ArrHeroClosestEnemy =  arrHeroClosestEnemy,
            };

            JobHandle jobHandle = findTargetJob.Schedule(this, inputDeps);

            AddComponentJob addComponentJob = new AddComponentJob {
                ArrHeroClosestTarget = arrHeroClosestEnemy,
                CommandBuffer = commandBufferSystem.CreateCommandBuffer().ToConcurrent(),
            };

            jobHandle = addComponentJob.Schedule(this, jobHandle);

            commandBufferSystem.AddJobHandleForProducer(jobHandle);

            return jobHandle;
        }

        [RequireComponentTag(typeof(Hero))]
        [ExcludeComponent(typeof(HadEnemy))]
        [BurstCompile]
        private struct FindTargetJob : IJobForEachWithEntity<Translation>
        {
            [DeallocateOnJobCompletion][ReadOnly]public NativeArray<EntityWithPosition> ArrEnemys;
            public NativeArray<Entity> ArrHeroClosestEnemy;

            public void Execute(Entity entity, int index, ref Translation translation)
            {
                float3 heroPos = translation.Value;
                Entity closestTarget = Entity.Null;
                float3 closestPos = float3.zero;

                for (int i = 0; i < ArrEnemys.Length; i++)
                {
                    EntityWithPosition targetInfo = ArrEnemys[i];

                    if (closestTarget == Entity.Null)
                    {
                        // 还没有敌人
                        closestTarget = targetInfo.Entity;
                        closestPos = targetInfo.Position;
                        continue;
                    }

                    if (math.distance(heroPos, targetInfo.Position) < math.distance(heroPos, closestPos))
                    {
                        closestTarget = targetInfo.Entity;
                        closestPos = targetInfo.Position;
                    }
                }

                ArrHeroClosestEnemy[index] = closestTarget;
            }
        }

        [RequireComponentTag(typeof(Hero))]
        [ExcludeComponent(typeof(HadEnemy))]
        [BurstCompile]
        private struct FindTargetJobWithBlock : IJobForEachWithEntity<Translation, BaseEntity>
        {
            [ReadOnly] public NativeMultiHashMap<int, BlockEntityInfo> MapAllEntity;
            public NativeArray<Entity> ArrHeroClosestEnemy;

            public void Execute(Entity entity, int index, [ReadOnly] ref Translation translation,
                ref BaseEntity quadrantEntity)
            {
                float3 heroPos = translation.Value;
                Entity closestEnemy = Entity.Null;
                float closestDist = float.MaxValue;

                int blockId = Help.CalcPositionBlockId(translation.Value);

                // 遍历九宫格的敌人
                FindEnemy(blockId, heroPos, quadrantEntity, ref closestEnemy, ref closestDist);
                FindEnemy(blockId + 1, heroPos, quadrantEntity, ref closestEnemy, ref closestDist);
                FindEnemy(blockId - 1, heroPos, quadrantEntity, ref closestEnemy, ref closestDist);
                FindEnemy(blockId + Help.BLOCK_ID_FAC_POS_Y, heroPos, quadrantEntity, ref closestEnemy, ref closestDist);
                FindEnemy(blockId - Help.BLOCK_ID_FAC_POS_Y, heroPos, quadrantEntity, ref closestEnemy, ref closestDist);
                FindEnemy(blockId + 1 + Help.BLOCK_ID_FAC_POS_Y, heroPos, quadrantEntity, ref closestEnemy, ref closestDist);
                FindEnemy(blockId - 1 + Help.BLOCK_ID_FAC_POS_Y, heroPos, quadrantEntity, ref closestEnemy, ref closestDist);
                FindEnemy(blockId + 1 - Help.BLOCK_ID_FAC_POS_Y, heroPos, quadrantEntity, ref closestEnemy, ref closestDist);
                FindEnemy(blockId - 1 - Help.BLOCK_ID_FAC_POS_Y, heroPos, quadrantEntity, ref closestEnemy, ref closestDist);

                ArrHeroClosestEnemy[index] = closestEnemy;
            }

            /// <summary>
            /// 寻找敌人
            /// </summary>
            private void FindEnemy(int blockId, float3 heroPosition, BaseEntity checkEntity,
                ref Entity closestTargetEntity, ref float closestTargetDistance)
            {
                BlockEntityInfo tmpEntityInfo;
                NativeMultiHashMapIterator<int> iteMapInfo;

                if (MapAllEntity.TryGetFirstValue(blockId, out tmpEntityInfo, out iteMapInfo))
                {
                    do
                    {
                        if (checkEntity.EntityType == tmpEntityInfo.BaseEntity.EntityType)
                        {
                            // 同类型的都不算敌人
                            continue;
                        }

                        if (closestTargetEntity == Entity.Null)
                        {
                            // 还没有目标
                            closestTargetEntity = tmpEntityInfo.Entity;
                            closestTargetDistance = math.distance(heroPosition, tmpEntityInfo.Position);
                            continue;
                        }

                        float tmpDist = math.distance(heroPosition, tmpEntityInfo.Position);
                        if (tmpDist < closestTargetDistance)
                        {
                            closestTargetEntity = tmpEntityInfo.Entity;
                            closestTargetDistance = tmpDist;

                        }
                    } while (MapAllEntity.TryGetNextValue(out tmpEntityInfo, ref iteMapInfo));
                }
            }
        }

        [RequireComponentTag(typeof(Hero))]
        [ExcludeComponent(typeof(HadEnemy))]
        private struct AddComponentJob : IJobForEachWithEntity<Translation>
        {
            [DeallocateOnJobCompletion] [ReadOnly] public NativeArray<Entity> ArrHeroClosestTarget;
            public EntityCommandBuffer.Concurrent CommandBuffer;

            public void Execute(Entity entity, int index, ref Translation translation)
            {
                if (ArrHeroClosestTarget[index] != Entity.Null)
                {
                    CommandBuffer.AddComponent(index, entity, new HadEnemy{Enemy = ArrHeroClosestTarget[index]});
                }
            }
        }
    }
    #endif

    /// <summary>
    /// 移动到敌人功能
    /// </summary>
    public class MoveToEnemySystem : ComponentSystem
    {
        private EntityManager entityMgr;        // ecs实体管理器

        protected override void OnCreate()
        {
            entityMgr = World.Active.EntityManager;

            base.OnCreate();
        }

        protected override void OnUpdate()
        {
            Entities.ForEach((Entity entity, ref Hero player, ref HadEnemy hadEnemy, ref Translation translation) =>
            {
                if (!entityMgr.Exists(hadEnemy.Enemy))
                {
                    // 敌人已经不存在了
                    PostUpdateCommands.RemoveComponent<HadEnemy>(entity);
                    return;
                }

                Translation tfEnemy = entityMgr.GetComponentData<Translation>(hadEnemy.Enemy);
                float3 moveDir = math.normalize(tfEnemy.Value - translation.Value);

                translation.Value += moveDir * player.MoveSpeed * Time.deltaTime;
                if (math.distance(translation.Value, tfEnemy.Value) < 0.2f)
                {
                    // 靠近敌人，消灭敌人
                    PostUpdateCommands.DestroyEntity(hadEnemy.Enemy);
                    PostUpdateCommands.RemoveComponent<HadEnemy>(entity);
                }
            });
        }
    }

    /// <summary>
    /// 敌人调试功能
    /// </summary>
    public class EnemyDebugSystem : ComponentSystem
    {
        private EntityManager entityMgr;        // ecs实体管理器

        protected override void OnCreate()
        {
            entityMgr = World.Active.EntityManager;

            base.OnCreate();
        }

        protected override void OnUpdate()
        {
            Entities.ForEach((Entity entity, ref Translation translation, ref HadEnemy hadEnemy) =>
            {
                if (!entityMgr.Exists(hadEnemy.Enemy))
                {
                    return;
                }

                Translation tfTarget = entityMgr.GetComponentData<Translation>(hadEnemy.Enemy);
                Debug.DrawLine(translation.Value, tfTarget.Value);
            });
        }
    }
}

Help.cs

using Unity.Mathematics;
using UnityEngine;

namespace KillMonster
{
    public static class Help
    {
        public const int BLOCK_SIZE = 5;                    // 块大小
        public const int BLOCK_ID_FAC_POS_Y = 1000;         // y坐标计算系数

        public static Vector3 GetMouseWorldPosition() {
            Vector3 worldPosition = Camera.main.ScreenToWorldPoint(Input.mousePosition);
            worldPosition.z = 0f;
            return worldPosition;
        }

        /// <summary>
        /// 计算坐标的分块id
        /// </summary>
        /// <param name="position"></param>
        /// <returns></returns>
        public static int CalcPositionBlockId(float3 position)
        {
            return (int) (math.floor(position.x / BLOCK_SIZE) +
                          (BLOCK_ID_FAC_POS_Y * math.floor(position.y / BLOCK_SIZE)));
        }
    }
}

代码地址 https://gitee.com/hahafox_0/unity-tutorial-ecs2019
