unity-doc-鱼群模拟

Posted on Edited on

特征

  • 聚集到群组中心
  • 趋向群体的平均方向
  • 避免与其它个体碰撞

实现-通过物理射线

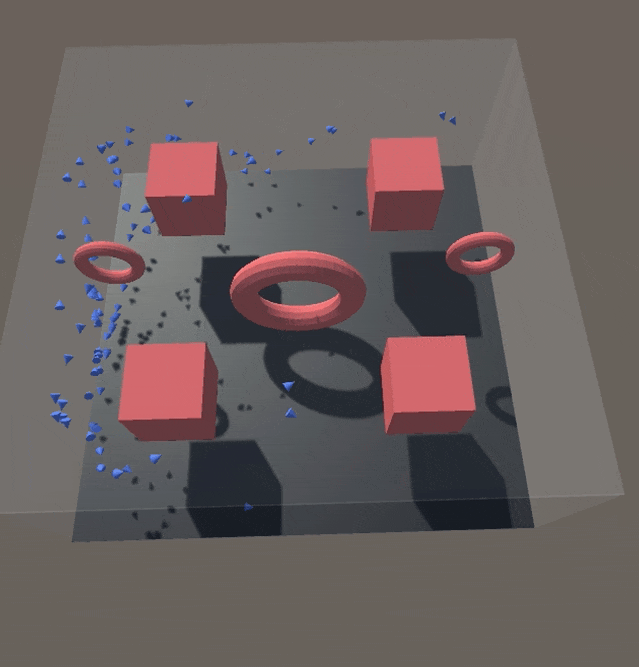

例子运行图
Boid.cs
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
using UnityEngine;

namespace WithPhysic
{
    /// <summary>
    /// 单个鸟实例
    /// </summary>
    public class Boid
    {
        BoidSettings settings;

        public Vector3 position;
        public Vector3 forward;
        Vector3 velocity;

        Vector3 acceleration;
        public Vector3 avgFlockHeading;
        public Vector3 avgAvoidanceHeading;
        public Vector3 centreOfFlockmates;
        public int numPerceivedFlockmates;

        Transform cachedTransform;
        Transform target;


        public void Init (BoidSettings settings, Transform target, GameObject goInst) {
            this.target = target;
            this.settings = settings;
            this.cachedTransform = goInst.transform;

            position = cachedTransform.position;
            forward = cachedTransform.forward;

            float startSpeed = (settings.minSpeed + settings.maxSpeed) / 2;
            velocity = cachedTransform.forward * startSpeed;
        }

        public void UpdateBoid () {
            Vector3 acceleration = Vector3.zero;

            if (target != null) {
                Vector3 offsetToTarget = (target.position - position);
                acceleration = SteerTowards (offsetToTarget) * settings.targetWeight;
            }

            if (numPerceivedFlockmates != 0) {
                centreOfFlockmates /= numPerceivedFlockmates;

                Vector3 offsetToFlockmatesCentre = (centreOfFlockmates - position);

                var alignmentForce = SteerTowards (avgFlockHeading) * settings.alignWeight;
                var cohesionForce = SteerTowards (offsetToFlockmatesCentre) * settings.cohesionWeight;
                var seperationForce = SteerTowards (avgAvoidanceHeading) * settings.seperateWeight;

                acceleration += alignmentForce;
                acceleration += cohesionForce;
                acceleration += seperationForce;
            }

            if (IsHeadingForCollision ()) {
                Vector3 collisionAvoidDir = ObstacleRays ();
                Vector3 collisionAvoidForce = SteerTowards (collisionAvoidDir) * settings.avoidCollisionWeight;
                acceleration += collisionAvoidForce;
            }

            velocity += acceleration * Time.deltaTime;
            float speed = velocity.magnitude;
            Vector3 dir = velocity / speed;
            speed = Mathf.Clamp (speed, settings.minSpeed, settings.maxSpeed);
            velocity = dir * speed;

            cachedTransform.position += velocity * Time.deltaTime;
            cachedTransform.forward = dir;
            position = cachedTransform.position;
            forward = dir;
        }

        bool IsHeadingForCollision () {
            RaycastHit hit;
            if (Physics.SphereCast (position, settings.boundsRadius, forward, out hit, settings.collisionAvoidDst, settings.obstacleMask)) {
                return true;
            } else { }
            return false;
        }

        Vector3 ObstacleRays () {
            Vector3[] rayDirections = Help.DIRECTIONS;

            for (int i = 0; i < rayDirections.Length; i++) {
                Vector3 dir = cachedTransform.TransformDirection (rayDirections[i]);
                Ray ray = new Ray (position, dir);
                if (!Physics.SphereCast (ray, settings.boundsRadius, settings.collisionAvoidDst, settings.obstacleMask)) {
                    return dir;
                }
            }

            return forward;
        }

        Vector3 SteerTowards (Vector3 vector) {
            Vector3 v = vector.normalized * settings.maxSpeed - velocity;
            return Vector3.ClampMagnitude (v, settings.maxSteerForce);
        }
    }
}
BoidsMgr.cs
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
using System.Collections.Generic;
using UnityEngine;

namespace WithPhysic
{
    public class BoidsMgr
    {
        private static BoidsMgr _inst;

        public static BoidsMgr Inst
        {
            get
            {
                if (_inst == null)
                {
                    _inst = new BoidsMgr();
                }

                return _inst;
            }
        }


        private BoidSettings settings;
        private List<Boid> listBoids = new List<Boid>(); // 鸟实例列表

        public void Init(BoidSettings settings)
        {
            this.settings = settings;
        }

        /// <summary>
        /// 创建鸟
        /// </summary>
        public void CreateBoid(GameObject goInst)
        {
            Boid boid = new Boid();
            boid.Init(settings, null, goInst);

            listBoids.Add(boid);
        }

        public void UpdateBoids()
        {
            int numBoids = listBoids.Count;
            var boidData = new BoidData[numBoids];

            for (int i = 0; i < listBoids.Count; i++)
            {
                listBoids[i].avgFlockHeading = boidData[i].flockHeading;
                listBoids[i].centreOfFlockmates = boidData[i].flockCentre;
                listBoids[i].avgAvoidanceHeading = boidData[i].avoidanceHeading;
                listBoids[i].numPerceivedFlockmates = boidData[i].numFlockmates;

                listBoids[i].UpdateBoid();
            }
        }
    }

    public struct BoidData {
        public Vector3 flockHeading;
        public Vector3 flockCentre;
        public Vector3 avoidanceHeading;
        public int numFlockmates;
    }
}

代码地址 https://gitee.com/hahafox_0/unity-example-boids
