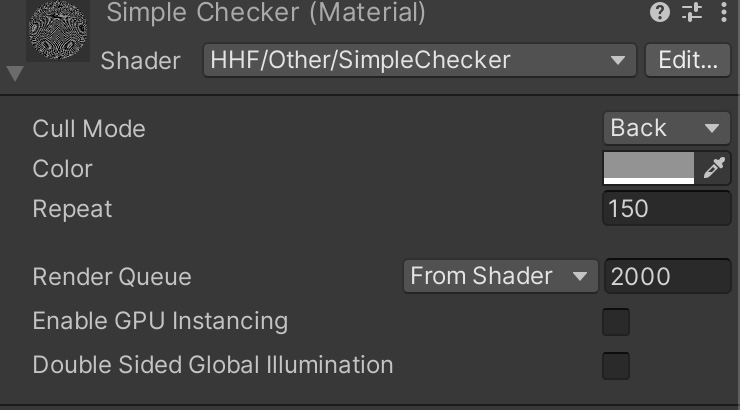

| Shader "HHF/Other/SimpleChecker"
{
Properties
{
[Enum(UnityEngine.Rendering.CullMode)]_Cull("Cull Mode", int) = 0
_Color("Color",Color) = (1,1,1,1)
_Repeat("Repeat",float) = 150
}
SubShader
{
Tags { "RenderPipeline" = "UniversalPipeline" "RenderType"="Opaque" }
Cull [_Cull]
Pass
{
HLSLPROGRAM
#pragma vertex vert
#pragma fragment frag
#include "Packages/com.unity.render-pipelines.core/ShaderLibrary/Color.hlsl"
#include "Packages/com.unity.render-pipelines.universal/ShaderLibrary/Core.hlsl"
#include "Packages/com.unity.render-pipelines.universal/ShaderLibrary/Lighting.hlsl"
#include "Packages/com.unity.render-pipelines.universal/ShaderLibrary/ShaderGraphFunctions.hlsl"
struct a2v
{
float4 vertex : POSITION;
float2 uv : TEXCOORD0;
};
struct v2f
{
float2 uv : TEXCOORD0;
float4 pos : SV_POSITION;
};
CBUFFER_START(UnityPerMaterial)
half _Repeat;
half4 _Color;
CBUFFER_END
v2f vert (a2v v)
{
v2f o;
o.pos = TransformObjectToHClip(v.vertex);
o.uv = v.uv * _Repeat;
return o;
}
half4 frag (v2f i) : SV_Target
{
half4 c;

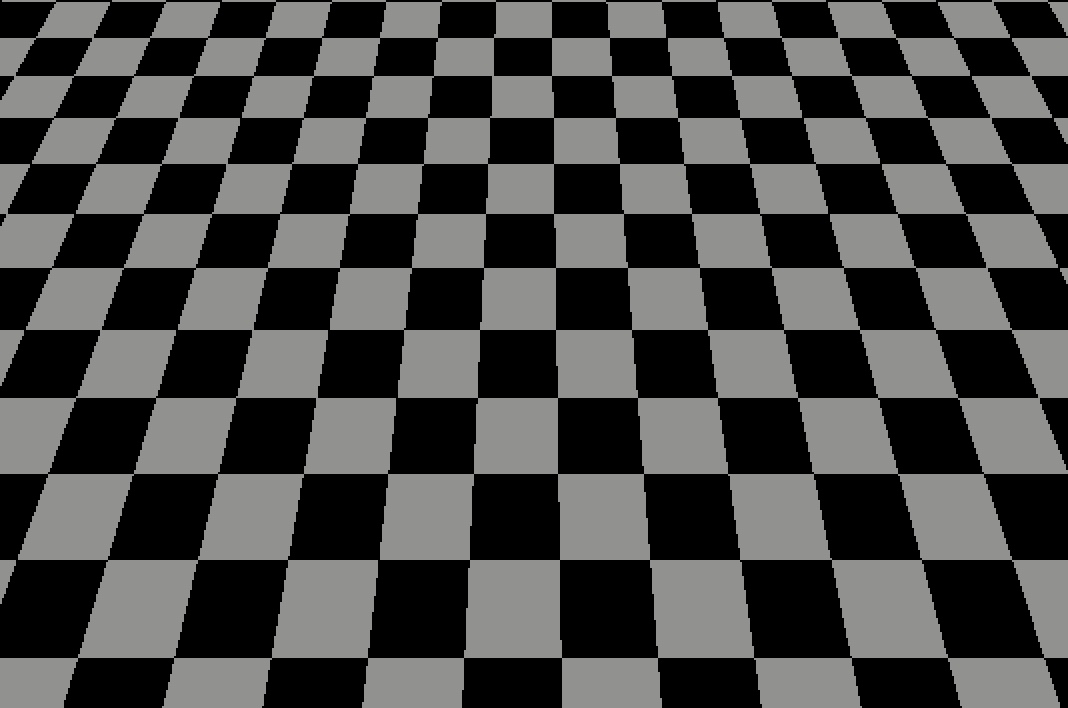

float2 uv = floor(i.uv * 2) * 0.5;
float checker = frac(uv.x + uv.y) * 2;
c = checker * _Color;
return c;
}
ENDHLSL
}
}
SubShader
{
Tags { "RenderType"="Opaque" }
Cull [_Cull]
Pass
{
CGPROGRAM
#pragma vertex vert
#pragma fragment frag
#include "UnityCG.cginc"
struct a2v
{
float4 vertex : POSITION;
float2 uv : TEXCOORD0;
};
struct v2f
{
float2 uv : TEXCOORD0;
float4 pos : SV_POSITION;
};
half _Repeat;
half4 _Color;
v2f vert (a2v v)
{
v2f o;
o.pos = UnityObjectToClipPos(v.vertex);
o.uv = v.uv * _Repeat;
return o;
}
fixed4 frag (v2f i) : SV_Target
{
half4 c;
float2 uv = floor(i.uv * 2) * 0.5;
float checker = frac(uv.x + uv.y) * 2;
c = checker * _Color;
return c;
}
ENDCG
}
}
Fallback "Diffuse"
}
|
