概述

红黑树是一个平衡二叉B树。

性质

  1. 每个节点是红的或者黑的
  2. 根节点是黑的
  3. 每个叶子节点是黑的
  4. 如果一个节点是红的，则它的两个儿子都是黑的
  5. 对每个节点，从该节点到其子孙节点的所有路径上包含相同数目的黑节点

添加节点

父节点是祖父节点的左子树的情况

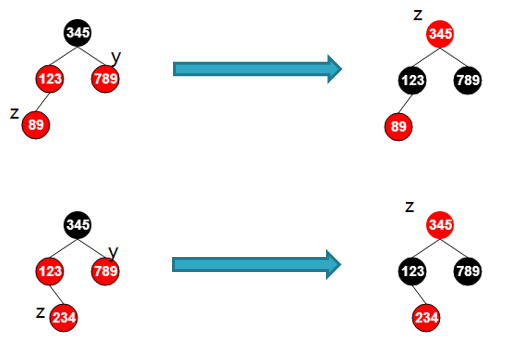

  1. 叔节点是红色的
    叔节点是红色的

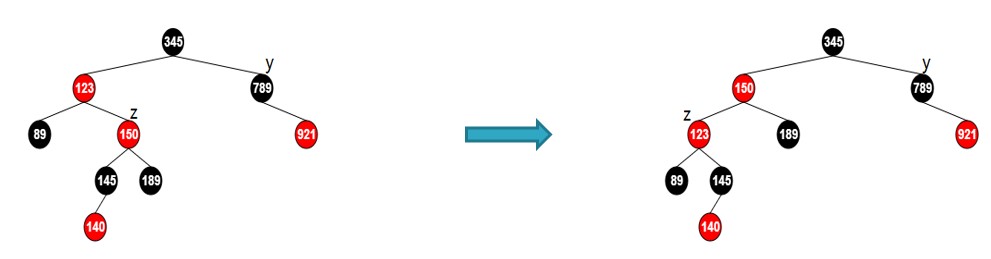

  2. 叔节点是黑色的，而且当前节点是右孩子
    叔节点是红色的

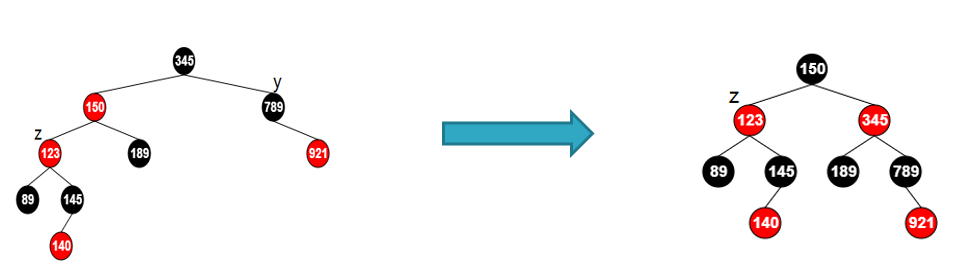

  3. 叔节点是黑色的，而且当前节点是左孩子
    叔节点是红色的

删除节点

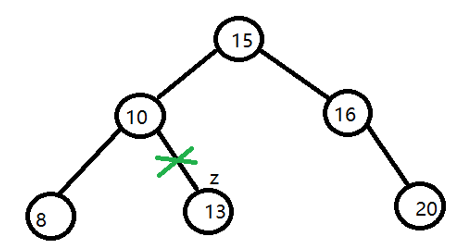

  1. 没有左右子树
    叔节点是红色的

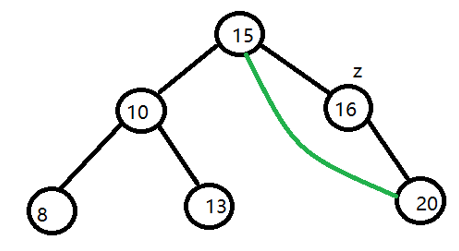

  2. 有左子树或者右子树
    叔节点是红色的

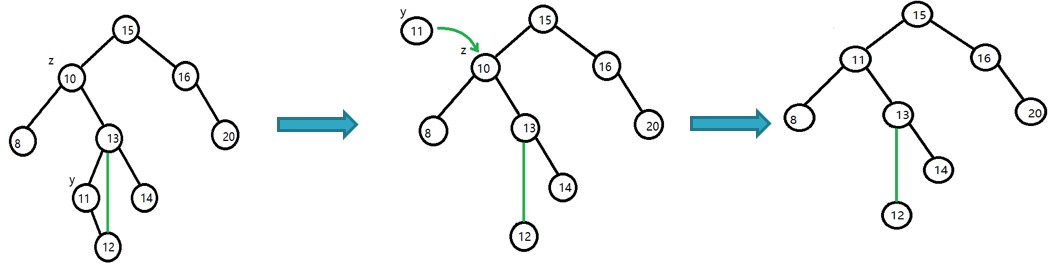

  3. 有左子树且有右子树
    叔节点是红色的

代码参考

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
#include <stdio.h>
#include <stdlib.h>
#include <string.h>

#define RED                1
#define BLACK             2

typedef int KEY_TYPE;

typedef struct _rbtree_node {
    unsigned char color;
    struct _rbtree_node *right;
    struct _rbtree_node *left;
    struct _rbtree_node *parent;
    KEY_TYPE key;
    void *value;
} rbtree_node;

typedef struct _rbtree {
    rbtree_node *root;
    rbtree_node *nil;
} rbtree;

rbtree_node *rbtree_mini(rbtree *T, rbtree_node *x) {
    while (x->left != T->nil) {
        x = x->left;
    }
    return x;
}

rbtree_node *rbtree_maxi(rbtree *T, rbtree_node *x) {
    while (x->right != T->nil) {
        x = x->right;
    }
    return x;
}

rbtree_node *rbtree_successor(rbtree *T, rbtree_node *x) {
    rbtree_node *y = x->parent;

    if (x->right != T->nil) {
        return rbtree_mini(T, x->right);
    }

    while ((y != T->nil) && (x == y->right)) {
        x = y;
        y = y->parent;
    }
    return y;
}


void rbtree_left_rotate(rbtree *T, rbtree_node *x) {

    rbtree_node *y = x->right;

    x->right = y->left; //1 1
    if (y->left != T->nil) { //1 2
        y->left->parent = x;
    }

    y->parent = x->parent; //1 3
    if (x->parent == T->nil) { //1 4
        T->root = y;
    } else if (x == x->parent->left) {
        x->parent->left = y;
    } else {
        x->parent->right = y;
    }

    y->left = x; //1 5
    x->parent = y; //1 6
}


void rbtree_right_rotate(rbtree *T, rbtree_node *y) {

    rbtree_node *x = y->left;

    y->left = x->right;
    if (x->right != T->nil) {
        x->right->parent = y;
    }

    x->parent = y->parent;
    if (y->parent == T->nil) {
        T->root = x;
    } else if (y == y->parent->right) {
        y->parent->right = x;
    } else {
        y->parent->left = x;
    }

    x->right = y;
    y->parent = x;
}

void rbtree_insert_fixup(rbtree *T, rbtree_node *z) {

    while (z->parent->color == RED) { //z ---> RED
        if (z->parent == z->parent->parent->left) {
            rbtree_node *y = z->parent->parent->right;
            if (y->color == RED) {
                z->parent->color = BLACK;
                y->color = BLACK;
                z->parent->parent->color = RED;

                z = z->parent->parent; //z --> RED
            } else {

                if (z == z->parent->right) {
                    z = z->parent;
                    rbtree_left_rotate(T, z);
                }

                z->parent->color = BLACK;
                z->parent->parent->color = RED;
                rbtree_right_rotate(T, z->parent->parent);
            }
        }else {
            rbtree_node *y = z->parent->parent->left;
            if (y->color == RED) {
                z->parent->color = BLACK;
                y->color = BLACK;
                z->parent->parent->color = RED;

                z = z->parent->parent; //z --> RED
            } else {
                if (z == z->parent->left) {
                    z = z->parent;
                    rbtree_right_rotate(T, z);
                }

                z->parent->color = BLACK;
                z->parent->parent->color = RED;
                rbtree_left_rotate(T, z->parent->parent);
            }
        }

    }

    T->root->color = BLACK;
}


void rbtree_insert(rbtree *T, rbtree_node *z) {

    rbtree_node *y = T->nil;
    rbtree_node *x = T->root;

    while (x != T->nil) {
        y = x;
        if (z->key < x->key) {
            x = x->left;
        } else if (z->key > x->key) {
            x = x->right;
        } else { //Exist
            return ;
        }
    }

    z->parent = y;
    if (y == T->nil) {
        T->root = z;
    } else if (z->key < y->key) {
        y->left = z;
    } else {
        y->right = z;
    }

    z->left = T->nil;
    z->right = T->nil;
    z->color = RED;

    rbtree_insert_fixup(T, z);
}

void rbtree_delete_fixup(rbtree *T, rbtree_node *x) {

    while ((x != T->root) && (x->color == BLACK)) {
        if (x == x->parent->left) {

            rbtree_node *w= x->parent->right;
            if (w->color == RED) {
                w->color = BLACK;
                x->parent->color = RED;

                rbtree_left_rotate(T, x->parent);
                w = x->parent->right;
            }

            if ((w->left->color == BLACK) && (w->right->color == BLACK)) {
                w->color = RED;
                x = x->parent;
            } else {

                if (w->right->color == BLACK) {
                    w->left->color = BLACK;
                    w->color = RED;
                    rbtree_right_rotate(T, w);
                    w = x->parent->right;
                }

                w->color = x->parent->color;
                x->parent->color = BLACK;
                w->right->color = BLACK;
                rbtree_left_rotate(T, x->parent);

                x = T->root;
            }

        } else {

            rbtree_node *w = x->parent->left;
            if (w->color == RED) {
                w->color = BLACK;
                x->parent->color = RED;
                rbtree_right_rotate(T, x->parent);
                w = x->parent->left;
            }

            if ((w->left->color == BLACK) && (w->right->color == BLACK)) {
                w->color = RED;
                x = x->parent;
            } else {

                if (w->left->color == BLACK) {
                    w->right->color = BLACK;
                    w->color = RED;
                    rbtree_left_rotate(T, w);
                    w = x->parent->left;
                }

                w->color = x->parent->color;
                x->parent->color = BLACK;
                w->left->color = BLACK;
                rbtree_right_rotate(T, x->parent);

                x = T->root;
            }

        }
    }

    x->color = BLACK;
}

rbtree_node *rbtree_delete(rbtree *T, rbtree_node *z) {

    rbtree_node *y = T->nil;
    rbtree_node *x = T->nil;

    if ((z->left == T->nil) || (z->right == T->nil)) {
        y = z;
    } else {
        y = rbtree_successor(T, z);
    }

    if (y->left != T->nil) {
        x = y->left;
    } else if (y->right != T->nil) {
        x = y->right;
    }

    x->parent = y->parent;
    if (y->parent == T->nil) {
        T->root = x;
    } else if (y == y->parent->left) {
        y->parent->left = x;
    } else {
        y->parent->right = x;
    }

    if (y != z) {
        z->key = y->key;
        z->value = y->value;
    }

    if (y->color == BLACK) {
        rbtree_delete_fixup(T, x);
    }

    return y;
}

rbtree_node *rbtree_search(rbtree *T, KEY_TYPE key) {

    rbtree_node *node = T->root;
    while (node != T->nil) {
        if (key < node->key) {
            node = node->left;
        } else if (key > node->key) {
            node = node->right;
        } else {
            return node;
        }
    }
    return T->nil;
}


void rbtree_traversal(rbtree *T, rbtree_node *node) {
    if (node != T->nil) {
        rbtree_traversal(T, node->left);
        printf("key:%d, color:%d\n", node->key, node->color);
        rbtree_traversal(T, node->right);
    }
}

int main() {

    int keyArray[20] = {24,25,13,35,23, 26,67,47,38,98, 20,19,17,49,12, 21,9,18,14,15};

    rbtree *T = (rbtree *)malloc(sizeof(rbtree));
    if (T == NULL) {
        printf("malloc failed\n");
        return -1;
    }

    T->nil = (rbtree_node*)malloc(sizeof(rbtree_node));
    T->nil->color = BLACK;
    T->root = T->nil;

    rbtree_node *node = T->nil;
    int i = 0;
    for (i = 0;i < 20;i ++) {
        node = (rbtree_node*)malloc(sizeof(rbtree_node));
        node->key = keyArray[i];
        node->value = NULL;

        rbtree_insert(T, node);

    }

    rbtree_traversal(T, T->root);
    printf("----------------------------------------\n");

    for (i = 0;i < 20;i ++) {

        rbtree_node *node = rbtree_search(T, keyArray[i]);
        rbtree_node *cur = rbtree_delete(T, node);
        free(cur);

        rbtree_traversal(T, T->root);
        printf("----------------------------------------\n");
    }
}
